DIY Cockpit Frame Guidance - Step by Step
Step 1: Choose Aluminum Profile Finish
Anodized Silver
Black Powder Coated
Step 2a: Choose Aluminum Profile Size
1.5x1.5
1.5x3

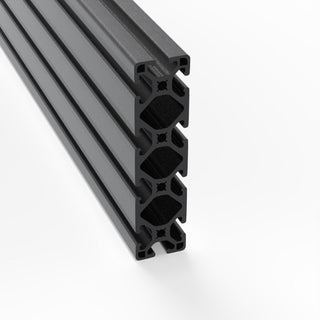

1.5x4.5
1.5x6
Step 2b: Choose Aluminum Profile Length

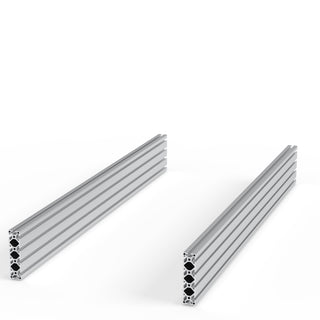

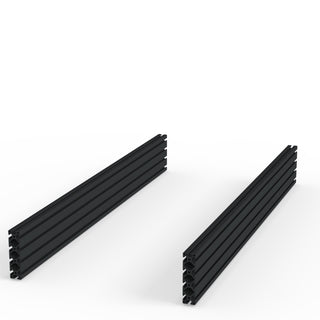

Long Side Profiles
Length: Usually 48-54 inches

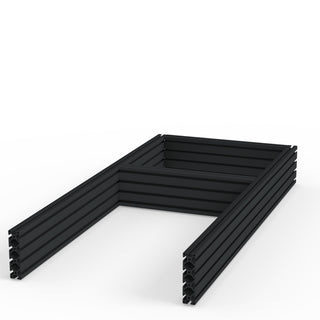

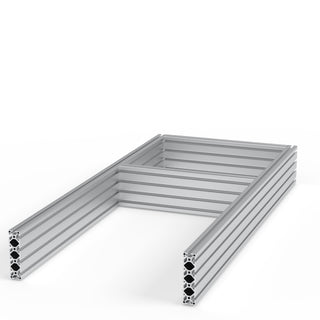

Cross-Spreader Profiles
Length: Usually 18-22 inches

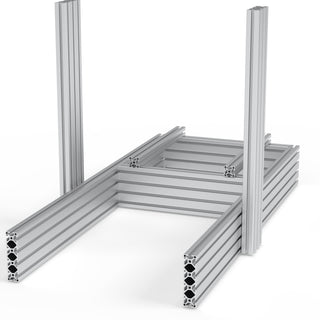

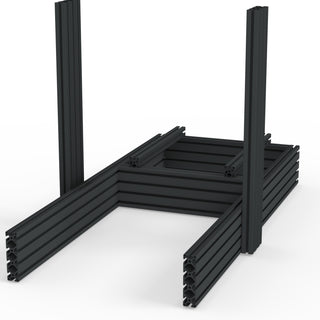

Wheel Upright Profiles
Length: Usually 20-28 inches
Seat Rail Profiles
Length: Usually 20 inches
Step 3: Add Corner Brackets
Each Bracket includes necessary T-Nuts and Bolts.
Corner Brackets
Notes:
- Our Corner Brackets are slotted and have tabs on them that help to keep them guided in the slot but can also be broken off in order to mount a brackets across a slot (as opposed ot inside of it)
- They are 38x36x36 mms (same as 40 Series)
- Not sure how many are ideal for your cockpit? We'd love to help! Ask us in the chat for more tips :)
(Shown in Silver)
1.5x1.5 Corner Brackets
includes:
- 2 x M8 T-Nuts
- 2 x M8 16mm Bolts
(Shown in Silver)
1.5x3 Corner Brackets
includes:
- 4 x M8 T-Nuts
- 4 x M8 20mm Bolts
Step 4 : Finishing Touches
Corner Bracket Cover Caps
1.5x1.5 Cover Caps
1.5x3 Cover Caps
Extrusion End Caps
1.5x1.5 End Cap
1.5x3 End Cap
1.5x4.5 End Cap
1.5x6 End Cap
