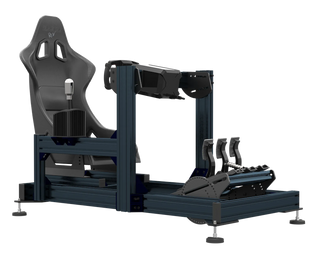

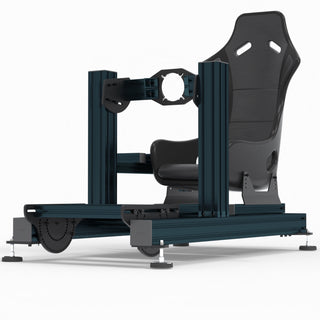

Pro Edition V2
It's a showpiece with the highest quality componants. It is as strong as it is beautiful.
Uses in-line mounting brackets to create amazingly strong connections.
Best framing technology ever. Nothing compares to the Pro.
- Side Base Profiles: 90x90mm
- Cross Base Profiles: 45x90mm
- Joining Brackets: In-Line Mounting
- Pedal Plate 360 (full 360 degrees)
- Sim Levelling Feet: Included
Dimensions:
51.5 (L) x 25 (W) x 32.2 (H) inches
1305 (L) x 630 (W) x820 (H) mm

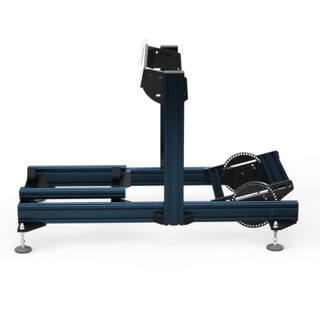

Pro-Motion V2
Engineered for motion actuator systems.
Assembled with massive 90x90mm brackets with locators and a perfect distribution of structural integirty.
Structurally reinforced the center of the cockpit to handle the most robust motion systems.
- Side Base Profiles: 90x90mm
- Cross Base Profiles: 45x90mm
- Joining Brackets: 90x90mm Corner Brackets
- Pedal Plate 360 (full 360 degrees)
- Sim Levelling Feet: Optional
Dimensions:
51.5 (L) x 25 (W) x 28.6 (H) inches
1305 (L) x 630 (W) x700 (H) mm
Pro-X Motion
Engineered for motion actuator systems.
90x90 cross breams ensure the cockpit will move as a singular frame.
Longer cockpit with wider body allows for the perfect placement of motion actuator systems.
- Side Base Profiles: 90x90mm
- Cross Base Profiles: 90x90mm
- Joining Brackets: 90x90mm In-Line Mounting Brackets
- Pedal Plate 360 (full 360 degrees)
- Sim Levelling Feet: Optional
Dimensions:
60 (L) x 30 (W) x 31.4 (H) inches
1530 (L) x 765 (W) x 700 (H) mm
As strong as they are beautiful.
The Pro Series allowed us to push the limits of traditional cockpit design to create a solution that’s stronger, more durable, and easier to assemble, all with a smaller footprint.
Not all aluminum profiles are equal.
We call it Pro for a reason.
A proud partner of Vention Commercial Grade Aluminum Profiles
Constructed from world renowned technology and best in class framing, your racing sim cockpit will be built with the same framing used by companies such as Google, Boeing and Universal Robotics.
Lighter. Stronger .Smarter.
Vention's double-arm profile system allows for redistribution of material from the profile’s center towards the outside.
There, it has the greatest impact on strength and stiffness, while reducing the material overall.
Vention V2 Aluminum Extrusions
In-Line Mounting
We use in-line mounting brackets to easily attach the profiles. These almost 1 inch thick brackets come preassembled to create a practically seamless robust connection.

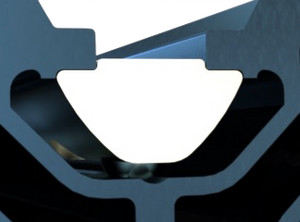

Intelligent Framing
Pro Series profile design features a bottom guide rail for the spring ball along with guiding edges that run the length of the extrusion. These fences force the t-nut into the correct position, so t-nuts will not turn when a connector is bolted to them

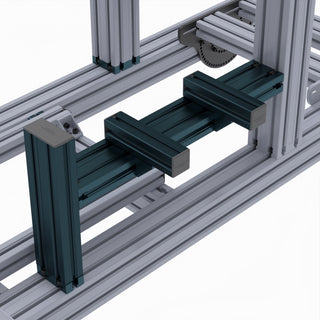

The Sideways Mounted Side Mount
1 Side Mount to Rule Them All!
Normally, side mounts have limited mounting options. We mount the Pro Side Mount along the frame, not on the side, which doubles the amount of surface contact and joint strength making this the strongest side mount ever.
Pro Side Mount Q & A
Why is it flat? Did you attach it wrong?
We def did it right! As we use 90x90mm framing, we are able to mount it sideways, eliminating any possibility of flex.
Well, if it's so so strong, where are all the brackets?
In-line mounting brackets attach to the end of an extrusion, turning the corner into its own joining bracket. Its strong, simple and seamless.
Can i attach the profiles sideways?

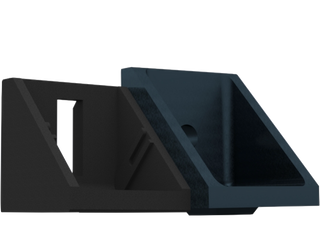

Of course, we use special corner brackets that have locators that sit inside the profile slot, as opposed to sitting on the profile. Nothing moves where it shouldn't.
