Compatibilty
Sigma Integrale
DK2
DK2+
DK6
Sigma includes the mounting plate.
Qubic System
PT Actuator
PT Actutator Scorpian.
Requires their U Brackets and the All in 1 Gaming Motion Mounting Plate (add it above).
D-Box
Gen 5 4250
coming soon
The Pro-X Motion has been engineered to dismiss the stress and leave the drivers with the most realistic driving experience possible.
Engine Vibration
The engine vibration is a high frequency haptics layer that requires a properly constructed chassis to translate and resonates the vibrations effectively.
All in 1 Gaming uses the highest quality aluminum extrusions and connections to ensure that all vibrations are properly translated to the driver.
Sway / Turning Roll
Roll and sway are both responsive motion layers that highlight the driver’s steering input. Proper chassis width and actuator placement is required to achieve the best roll and sway movements.
The Pro-X Motion chassis features extensive reinforcement and component selection to ensure optimal communications of this motion layer.
Gas/Brake
Surge is very responsive and highlights the driver’s pedal inputs. Surge also induces pitch naturally, and this layer replicates the responsiveness of surge by converting to responsive pitch movements.
The Pro-X Motion chassis is designed to take repetitive jerky pitch motions to replicate exact brake engagement.
Bumps
The heave motion layer captures the low-frequency up-and-down movement of the vehicle. The layer is very important in determining how much load the vehicle has and how much potential traction the drive can expect.
The Pro-X Motion chassis is designed to repeated handle, momentary up and down stress loads on the chassis, and communicates directly to the driver.
The Strongest Cockpit Ever
Proud Partner of Vention Tech
All in 1 Gaming partnered up with Vention Technologies, a world leader in industrial manufacturing equipment and automation to engineer, design, test and deploy the strongest, most commercial grade racing simulator ever.

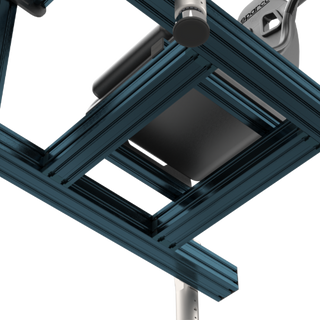

In-Line Mounting Brackets
Frame Cohesion
The best frame for sim racing with motion is a single platform in order to ensure that all 4 actuators translate the exact motion direction to the driver and without any cockpit flex. We designed a strong, unified frame using connectors that hold the entire cockpit together securely. Our nearly 1-inch thick in-line mounting brackets bolt directly into the aluminum extrusion on one end and the frame on the other. This ensures the cockpit moves as one, with no side or corner lagging behind
Strong 90mm framing
Commercial Grade
We built the Pro-X using 90x90mm commercial grade aluminum extrusions. Surface area matters when it comes to strong joints so when 90mm of surface area connect with another 90mm aluminum profile, the result is a connection so strong that the entirety of the frame has zero flex even when the mightiest of motion actuators are moving at 4 corners of the rig.
Ideal Driver Seating Position
Perfect X
By extending the cockpit by 9 inches in length, it allows for the motion actuators to be placed 30 inches across from each other and 30 inches in front and back of each other allowing the driver to actually be sitting in the "sweet spot" when using a motion actuator system. With the driver smack right in the middle of the X, the word simulation starts to fade away and the most realistic racing experience becomes possible.
We added freedom to your pedal mounting.
Although it may look like we designed our pedal mounting solution just to be super super cool, but in fact, it will mount any pedal, at any angle, with super strength and adjustability.
Nothing Compares to the Pro-X Motion
Industry Leading Strength
Pro-X Motion
The Pro-X unique in-line mounting brackets are able to join 90x90mm onto a 90x90mm side. That is 8100 sq. mm of direct joint contact.
Other Cockpits
Most cockpits only have 2 x40mmx40mm brackets on the top and bottom corners, resulting in on 1600 sq mm of direct joint contact.

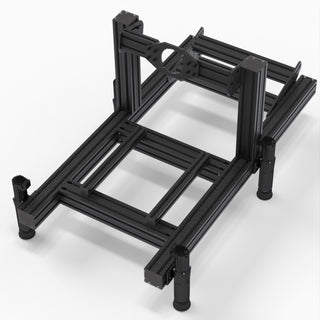

Entire Frame is Unified
Pro-X Motion
The entire middle "spreader" profiles are attached directly to the outside profiles create a singular platform.
Other Cockpits
2 Corner brackets hold together each side of the spreader profiles to the outside profiles.
Ideal Cockpit Length & Width
Pro-X Motion
The Pro-X Motion is 30 inches wide and 60 inches long. The wheel mounts securely mounted on top so you are free to place the actuators anywhere along the side of the cockpit. This allows for the perfect actuators placements of 30in x 30 in.
Other Cockpits
Most racing sim cockpits are around 26 inches wide and range from 50 - 54 inches long. Those rectangular dimensions, along with the wheel uprights mounted on the sides intrude on proper placements of the actuators.
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,G27, G29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1, V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st
✅ SimMagic M10, Alpha, Mini, Ultimate
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD Pro
Side Mounting Options
Side Mount
22 inch long profile that can be raised or lowered. Can be used on left or right side.
Shifter Plate
Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec
Fanatec Kit
Includes:4 x corner brackets perfectly matching the underside hole locations
Deluxe Kit
Includes: 2 x 180mm (7in) crossbars secured by 4 corner brackets easily mounting any shifter or handbrake.
Triple Deluxe Kit
Includes: 2 x 180mm (7in)+ 1 x 270mm (10.5in) crossbars secured by 6 corner brackets easily mounting any shifter or handbrake or a combination of both.
AnyMount
Includes: 1 x 14in (360mm) upright, 1 x 12.4in (315mm) cross profile, 2 x 10.6in (270mm) mounting profiles, 4 extra to use to mount your device.
Pro-X Motion Specifications
Included
Pro-X Motion Frame
- Azure blue anodized aluminum extruded profiles.
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Pedal Plate 360
- Pedal Plate 360 x 2
- Pedal Spreader Aluminum Profile x 2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Or Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- "Connect Your Gear" . All bolts and Nuts to attach your wheel, pedals, shifter, seat, etcs
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Base Plates & Sim Feet
- 4 x 3 hole 9.5mm thick baseplates
- 4 x 120mm high Levelling feet x 4
- 80mm Scratch Resistant Rubber Base
- Flanged Head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Side Shifter Mount
- 4 x 3 hole 9.5mm thick baseplates
- 4 x 120mm high Levelling feet x 4
- 80mm Scratch Resistant Rubber Base
- Flanged Head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Pro-X Motion Dimensions
Length: 1530mm / 60 inches
Width: 765mm / 30.1 inches
Height: 742mm / 29.2 inches
