Sim Mounted Monitor Mount - Phantom Series

Regular price $199.00
Unit price
per
Have questions? Your Pit Crew is here to help. Chat Now

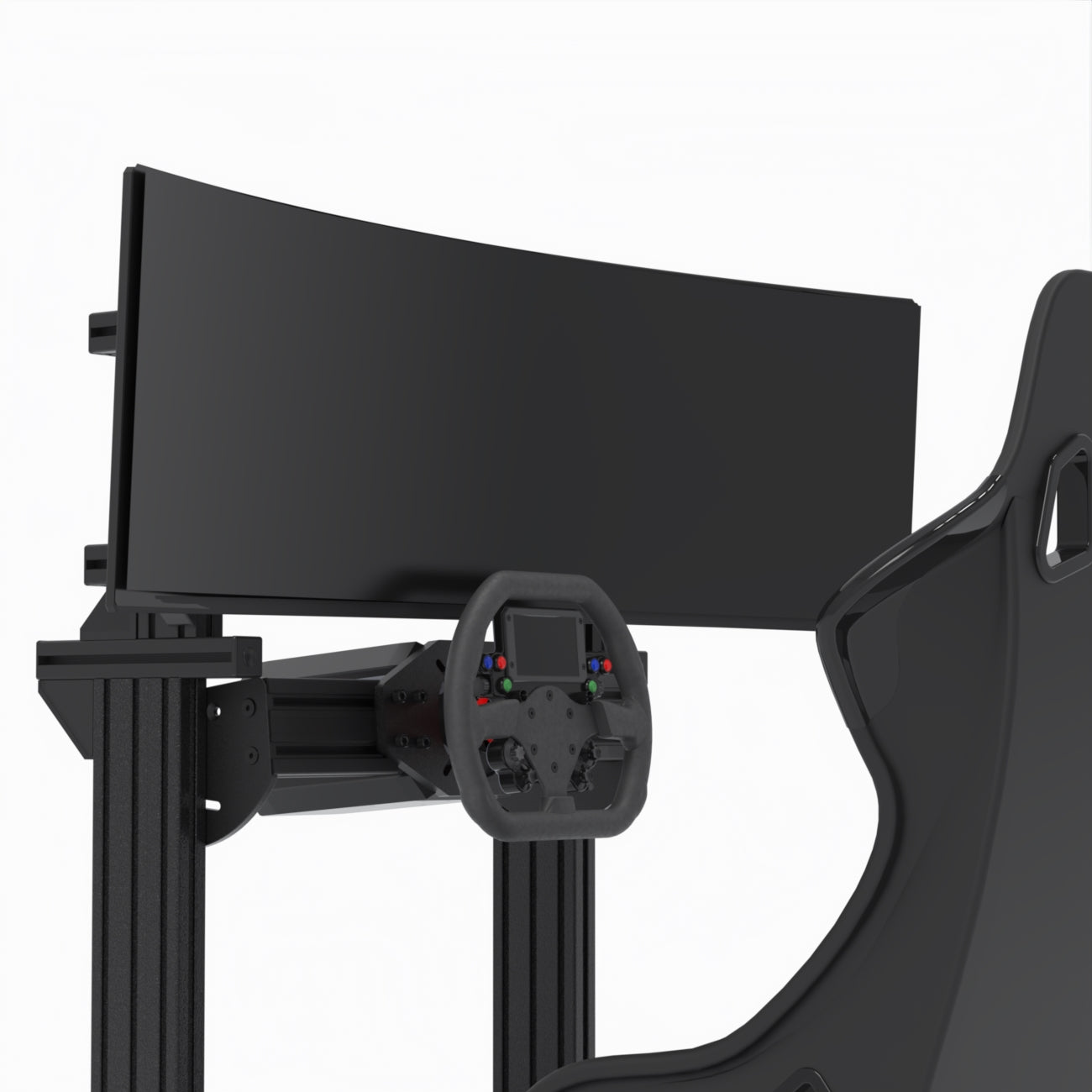

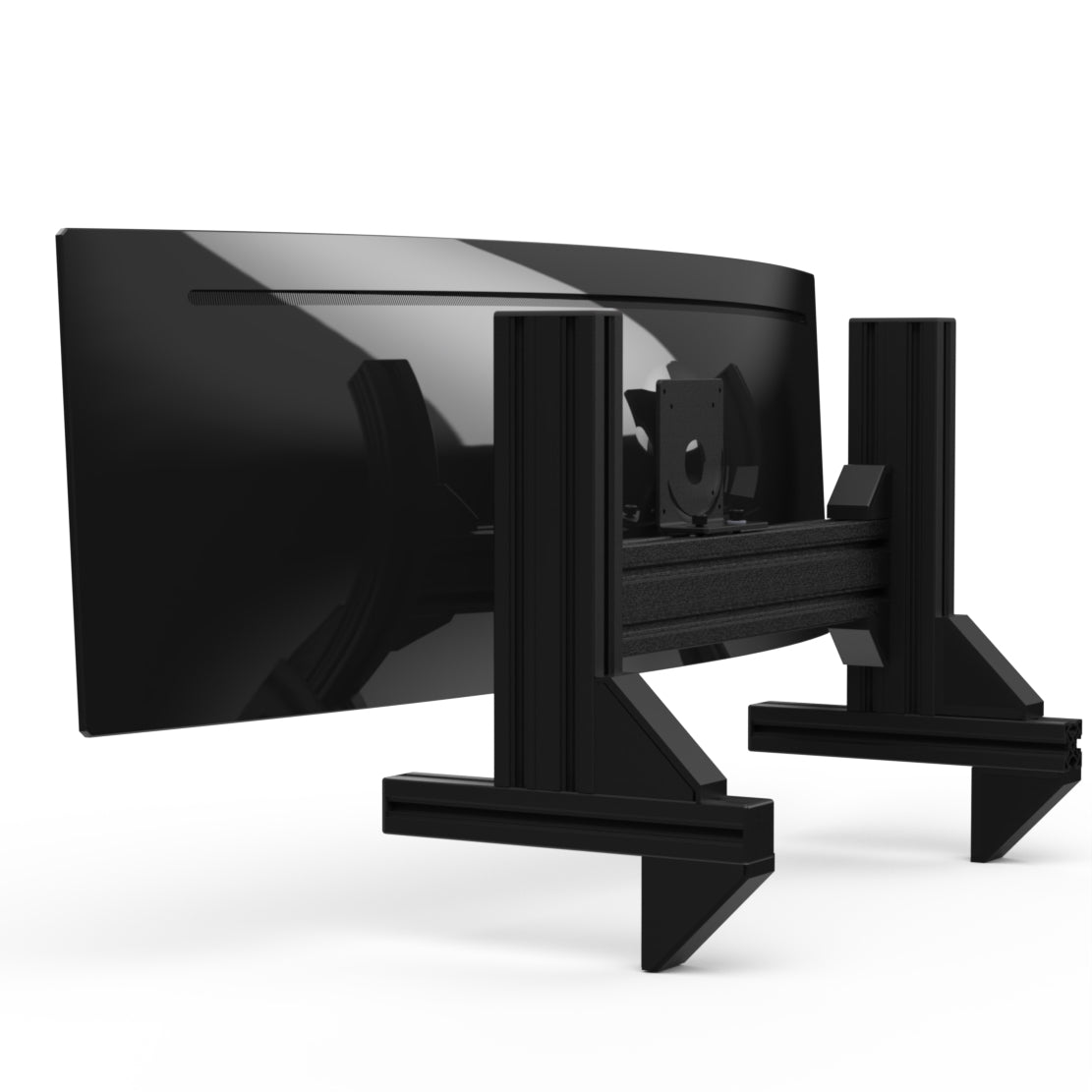

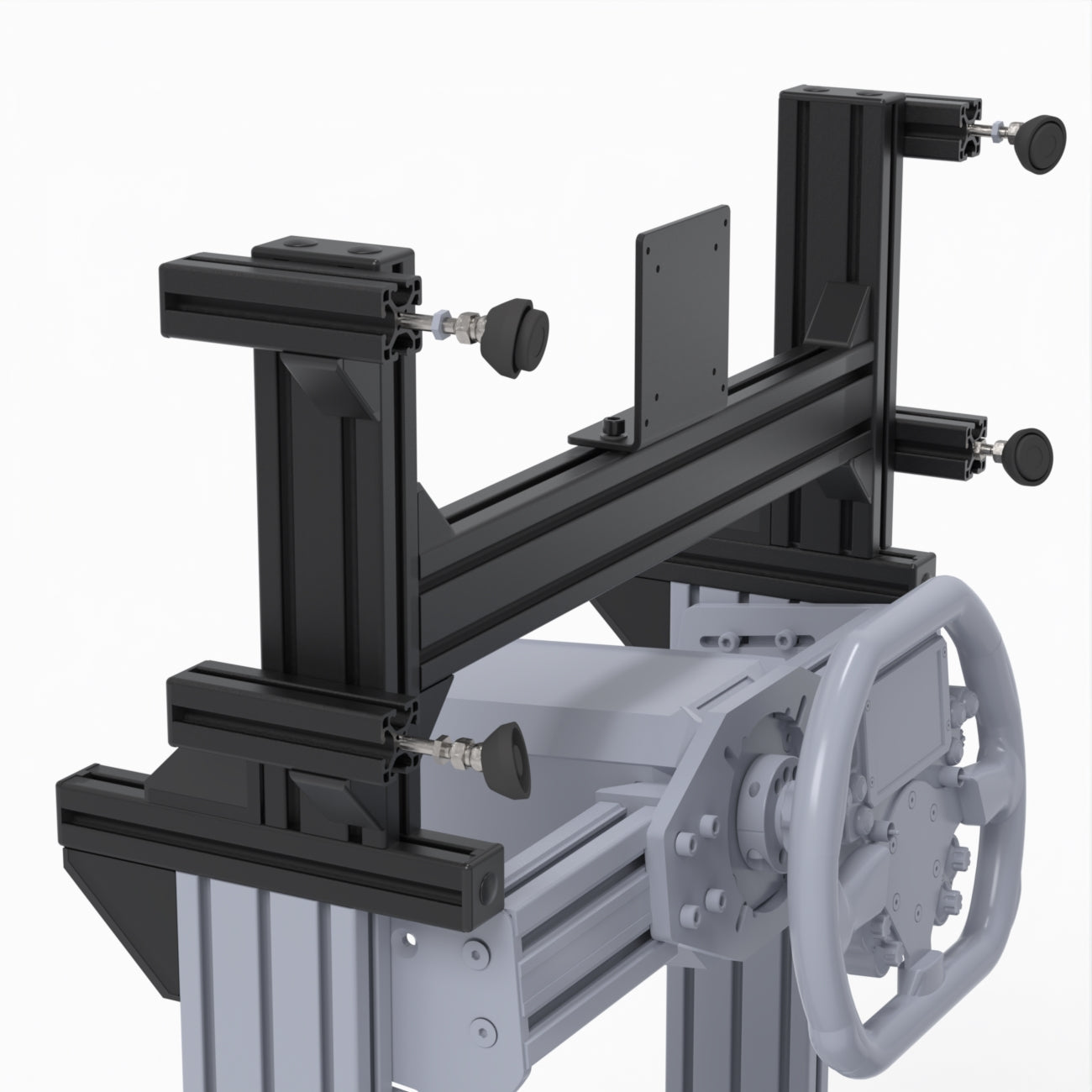

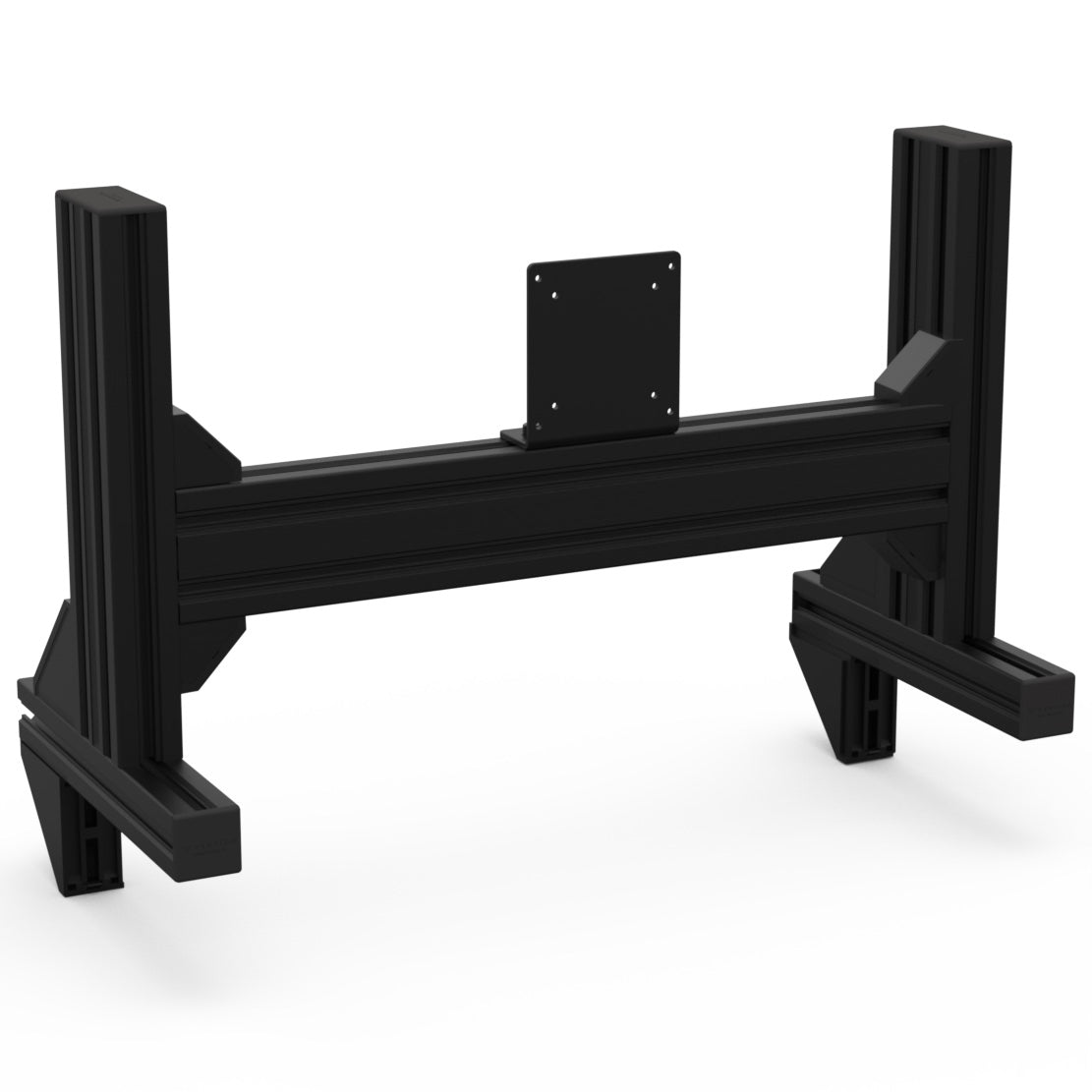

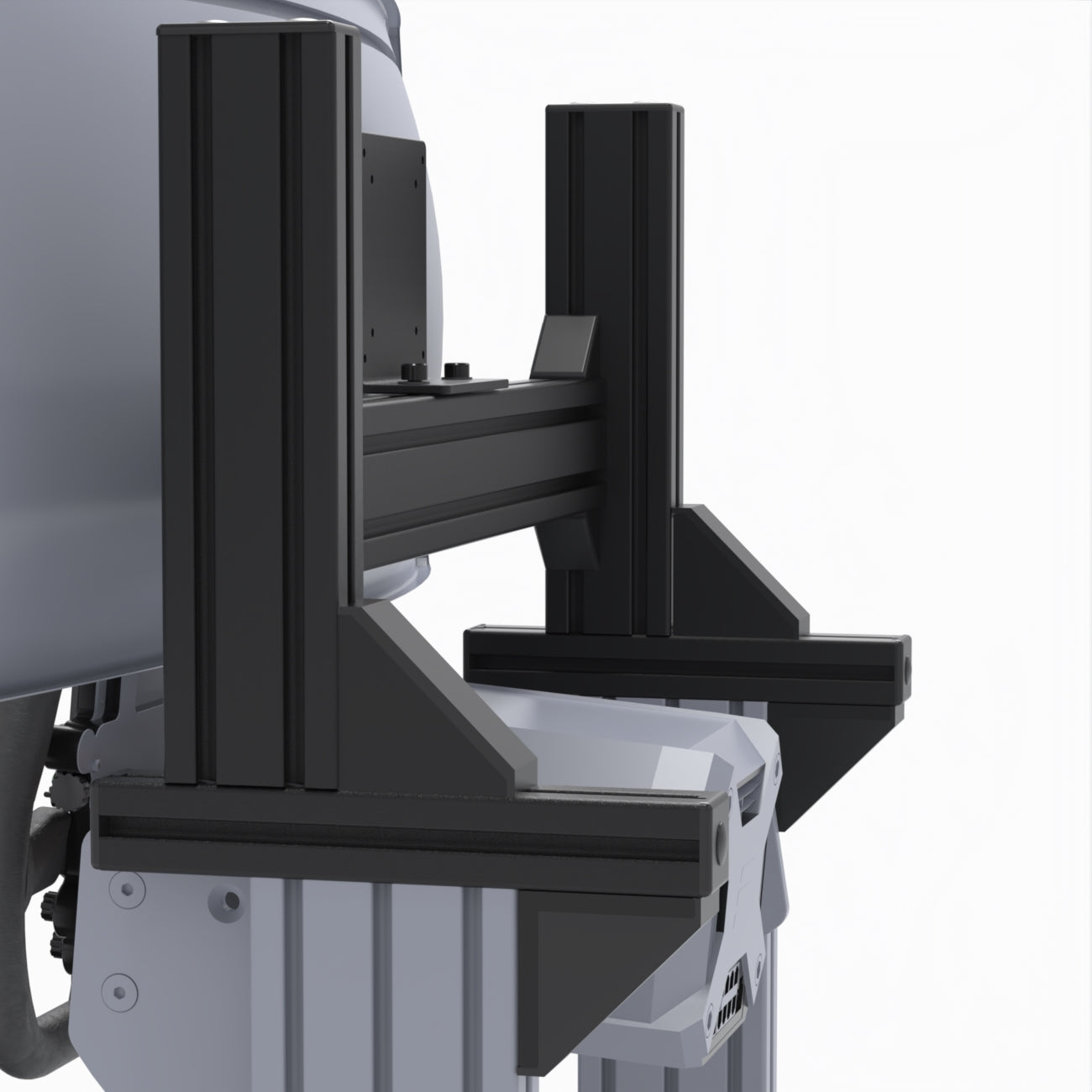

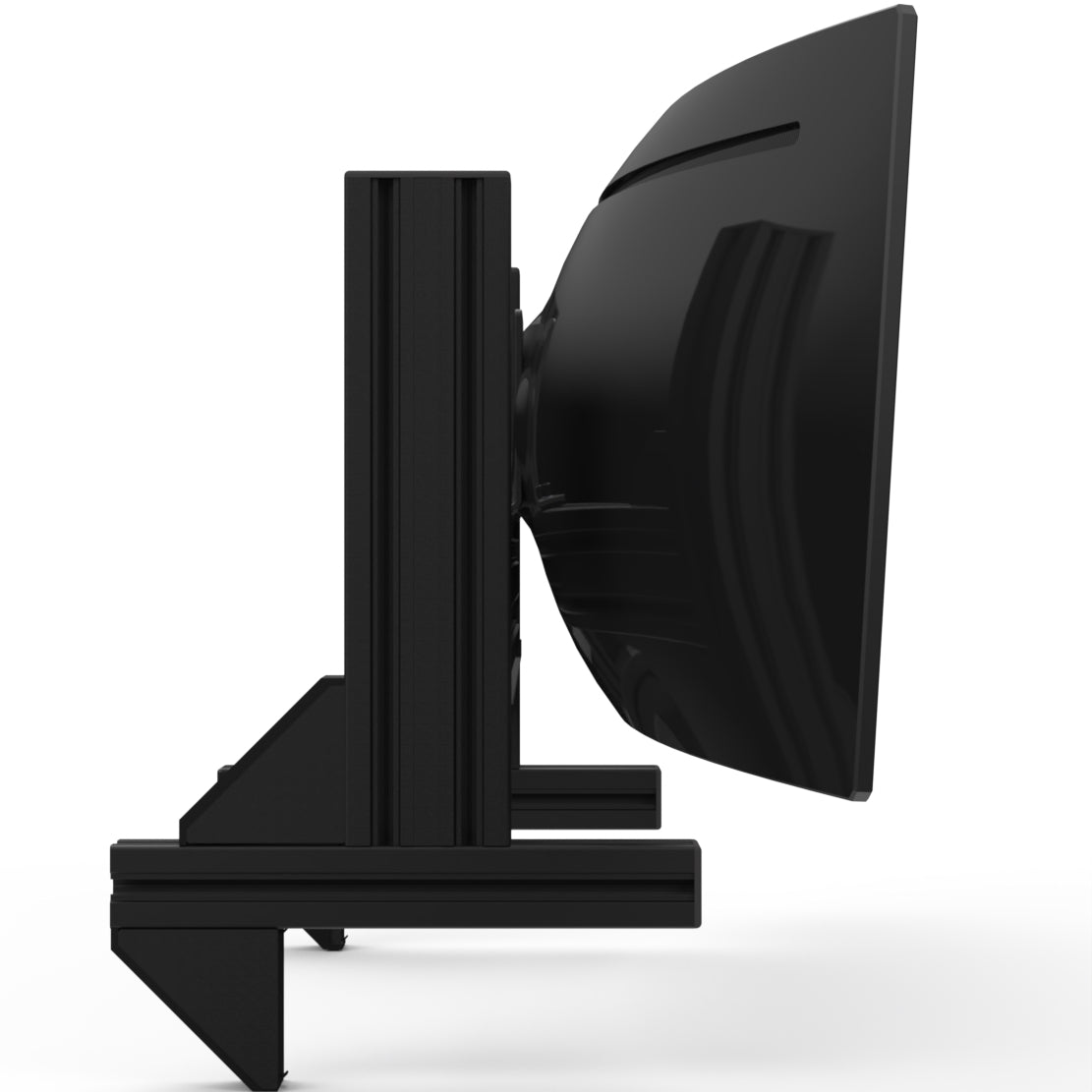

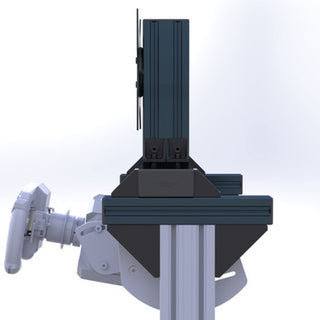

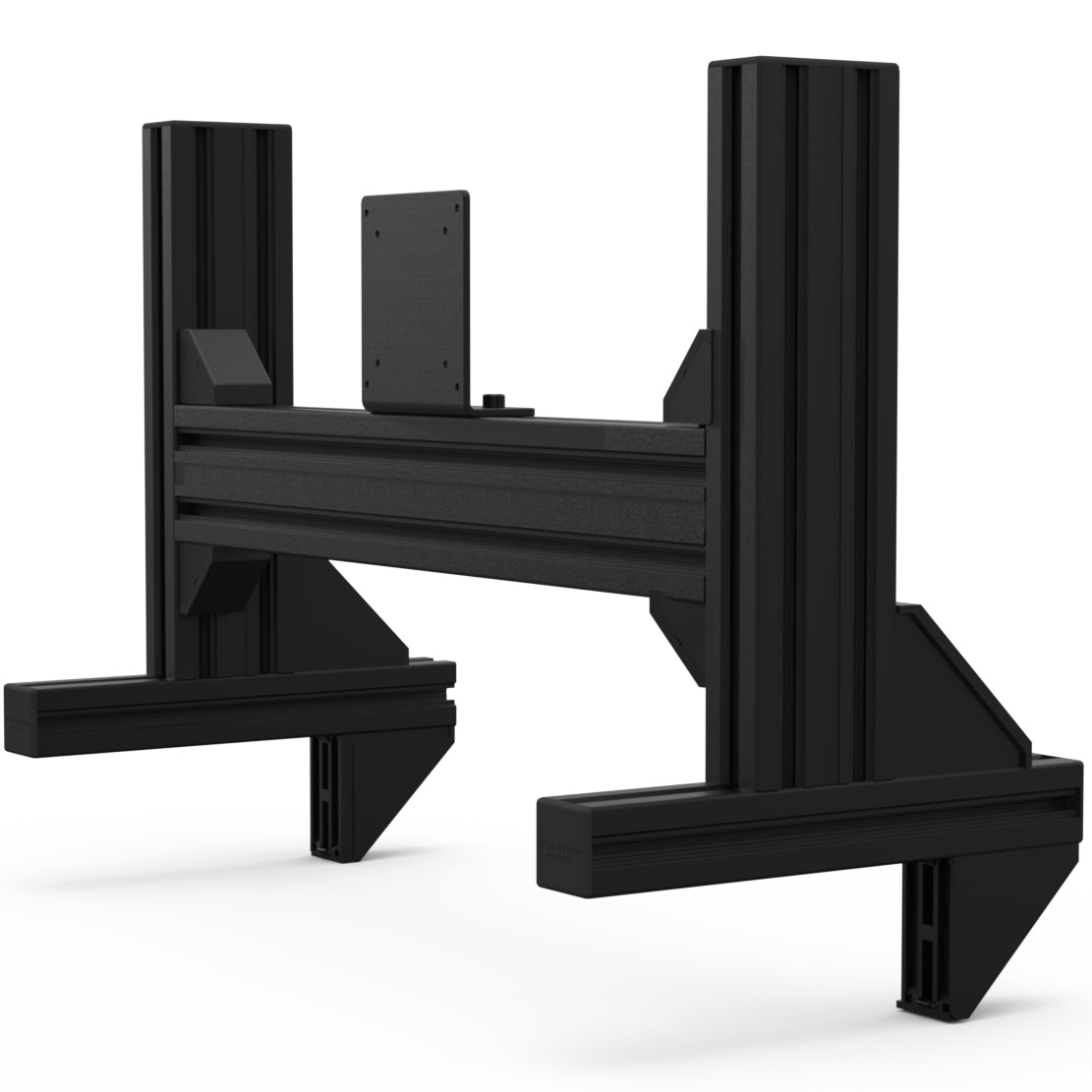

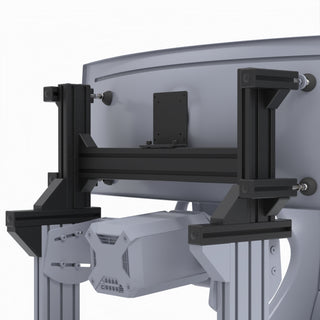

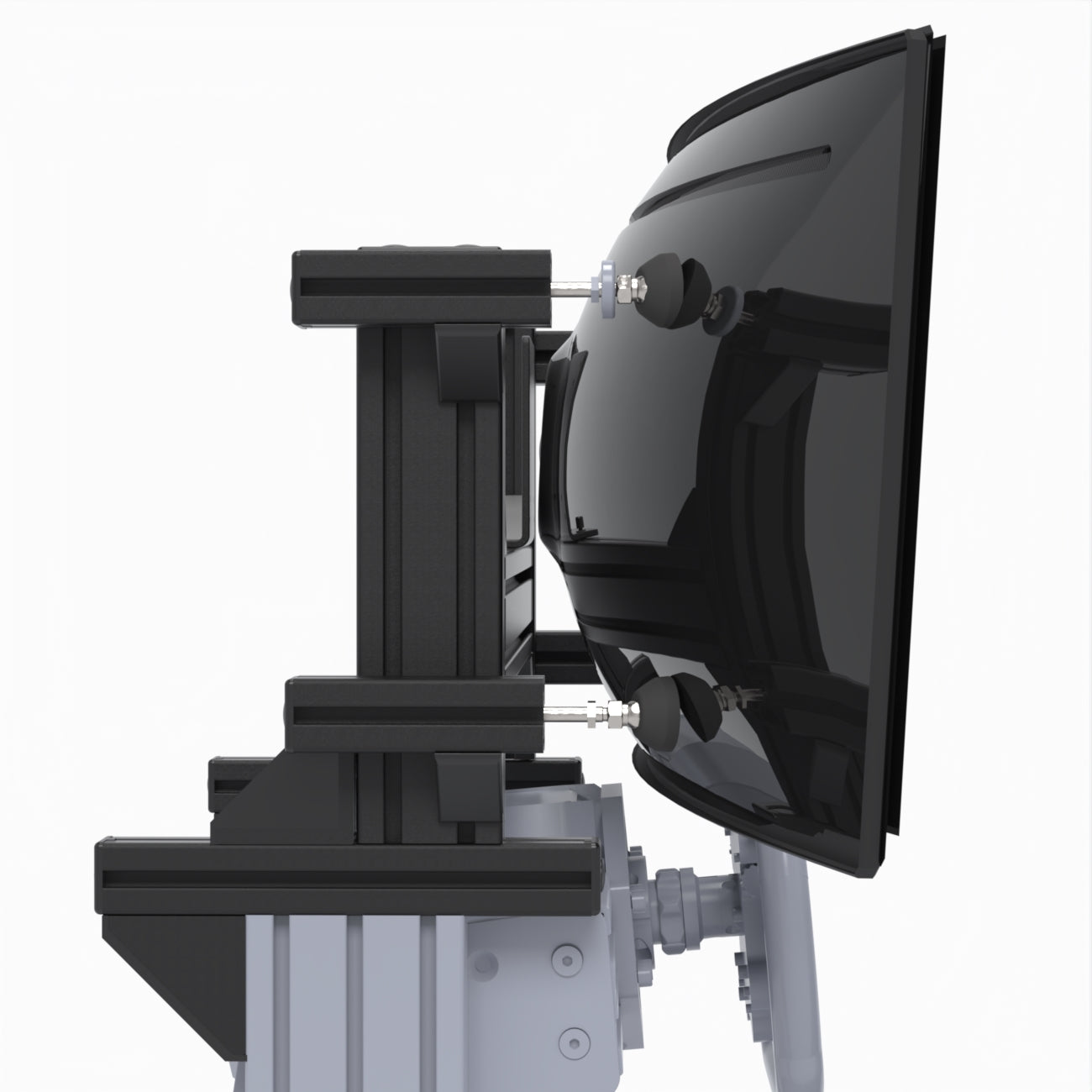

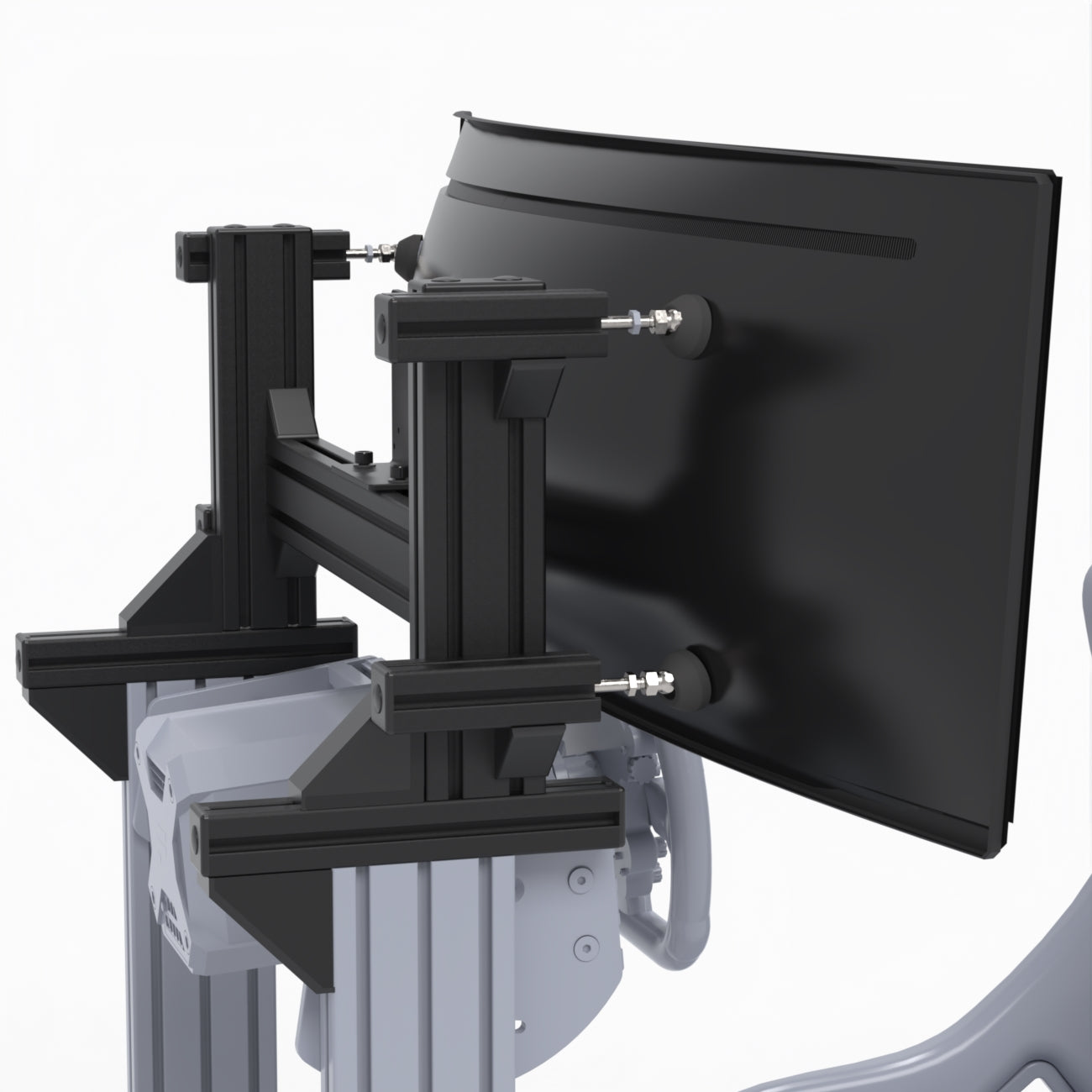

Phantom Integrated Single Monitor Mount

A solid, secure, and easily adjustable solution for seamlessly integrating up to a 49-inch ultra-wide monitor onto your cockpit while maintaining its sleek aesthetic. Our single monitor mount seamlessly attaches to your All in One Gaming racing chassis in the same sleek style as it's frame while allowing you to bring your monitor as close to the wheel as you like.

Height adjustable along an 11.5 inch vertical profile and horizontally adjustable along the 10 inch side rails.

Features

included

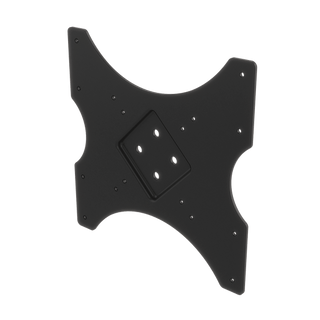

75/100/200 VESA Mount

VESA standard mounting interfaces of 75x75, 100x100, 200x100 and 200x200.

Included

Point of View

Easily bring your monitor up close to the sweet spot right behind your wheel.

option

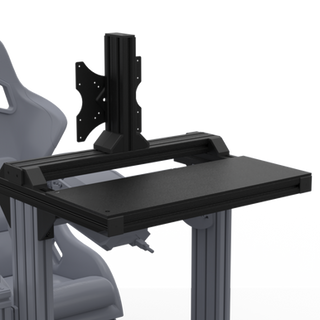

PC Shelf

Adds extended rails to your integrated single monitor mount and a 26 inch wide,

Specifications

  • Height: 13 inches (330 mm)
  • Width: 26 inches (660 mm)
  • Depth: 12 inches (304 mm)
  • Finish: Black Powder Coated
  • Manufacturer: All in 1 Gaming
  • Warranty: 3 years

Box Contents

Aluminum Profiles:

  • 1 x 26 inch 1.5x3 inch profile
  • 1 x 11.5 inch 1.5x3 inch profile
  • 2 x 12 inch 1.5x1.5 inch profiles

Connectors:

  • black powder coated corner brackets
  • M8 drop-in, spring loaded T-Nuts
  • M8 grade 12.9 steel bolts
  • cover caps for corner brackets

Other:

  • 75, 100, 200 XESA plate
  • M4 Bolt Kit: 4 x M4 10mm, 4 x M4 14mm, 4 x M4 18mm, 4x M4 20mm bolt, M4 Allen hex key

Compatibility

  • Supports curved widescreen monitors up to 49 inches and up to 30 lbs each
  • Supports non-curved monitors up to 42in and up to 30 lbs

Download Assembly Instructions
