The Pro-Motion has been engineered to dismiss the stress and leave the drivers with the most realistic driving experience possible.
Engine Vibration
The engine vibration is a high frequency haptics layer that requires a properly constructed chassis to translate and resonates the vibrations effectively.
All in 1 Gaming uses the highest quality aluminum extrusions and connections to ensure that all vibrations are properly translated to the driver.
Sway / Turning Roll
Roll and sway are both responsive motion layers that highlight the driver’s steering input. Proper chassis width and actuator placement is required to achieve the best roll and sway movements.
The Pro-Motion chassis features extensive reinforcement and component selection to ensure optimal communications of this motion layer.
Gas/Brake
Surge is very responsive and highlights the driver’s pedal inputs. Surge also induces pitch naturally, and this layer replicates the responsiveness of surge by converting to responsive pitch movements.
The Pro-Motion chassis is designed to take repetitive jerky pitch motions to replicate exact brake engagement.
Bumps
The heave motion layer captures the low-frequency up-and-down movement of the vehicle. The layer is very important in determining how much load the vehicle has and how much potential traction the drive can expect.
The Pro-Motion chassis is designed to repeated handle, momentary up and down stress loads on the chassis, and communicates directly to the driver.

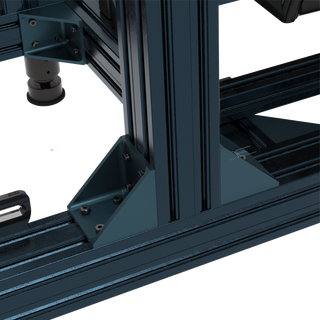

No Flex. Stunning Color. Patented Design.
A proud partner of Vention Commercial Grade Aluminum Profiles.
Vention’s high-precision aluminum extrusion profiles rank best-in-class in terms of structural rigidity, straightness, and precision.
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,G27, G29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1, V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st
✅ SimMagic M10, Alpha, Mini, Ultimate
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD Pro
Side Mounting Options
Side Mount
22 inch long profile that can be raised or lowered. Can be used on left or right side.
Shifter Plate
Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec
Fanatec Kit
Includes:4 x corner brackets perfectly matching the underside hole locations
Deluxe Kit
Includes: 2 x 180mm (7in) crossbars secured by 4 corner brackets easily mounting any shifter or handbrake.
Triple Deluxe Kit
Includes: 2 x 180mm (7in)+ 1 x 270mm (10.5in) crossbars secured by 6 corner brackets easily mounting any shifter or handbrake or a combination of both.
AnyMount
Includes: 1 x 14in (360mm) upright, 1 x 12.4in (315mm) cross profile, 2 x 10.6in (270mm) mounting profiles, 4 extra to use to mount your device.

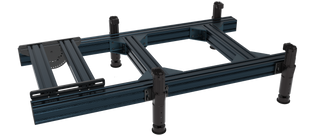

Pro-Motion Specifications
Included
Pro-Motion Frame
- Azure blue anodized aluminum extruded profiles.
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Pedal Plate 360
- Pedal Plate 360 x 2
- 385mm 45x90 Aluminum Profile x 2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Or Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- "Connect Your Gear" . All bolts and Nuts to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Base Plates & Sim Feet
- 4 x 3 hole 9.5mm thick baseplates
- 4 x 120mm high Levelling feet x 4
- 80mm Scratch Resistant Rubber Base
- Flanged Head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Side Shifter Mount
- 1 x 22 inch horizontal mounting Aluminum Extrusion
- 1 x 16 inch Vertical Aluminum Profile
- 7 x 45x45mm Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- As Ordered ; Stadard / Shifter Plate / Fanatec Kit / Deluxe Kit
Pro-Motion Dimensions
Length: 1395mm / 55inches
Width: 675mm / 26.5 inches
Height: 720mm / 28.3 inches
