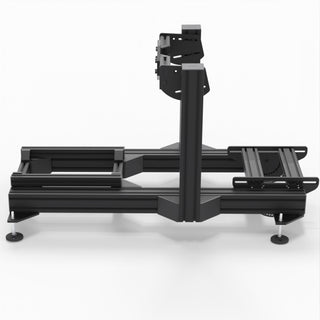

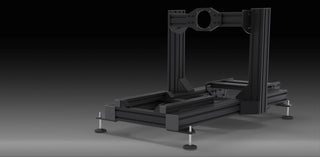

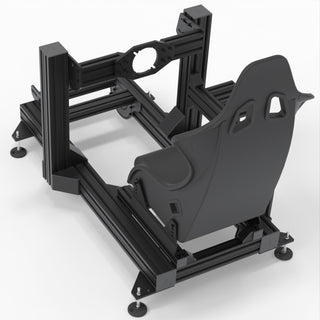

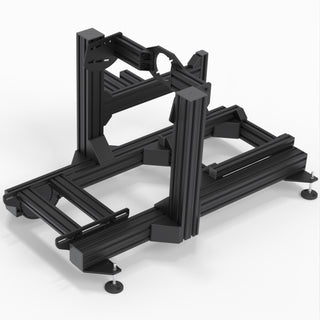

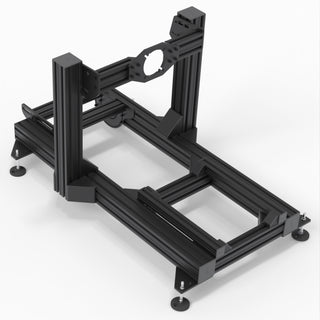

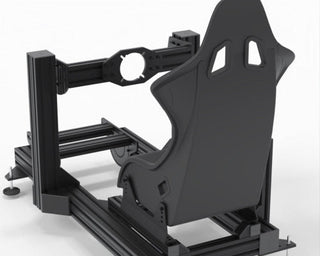

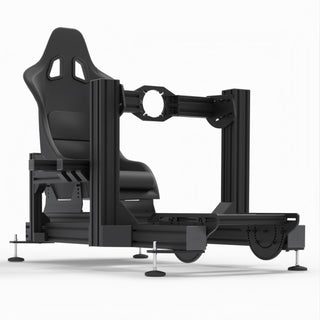

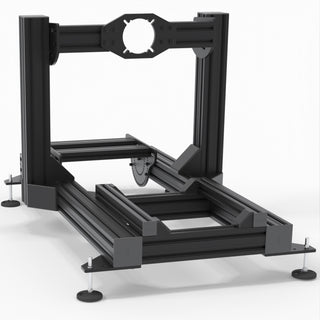

The Pro LE Plus. Serious Muscle.
The Pro LE Plus may look like it is flexing like a bodybuilder in front of the mirror… only it doesn’t actually flex. With 90mm framing connected with 90mm brackets, there is no stronger solution for your wheelbase.

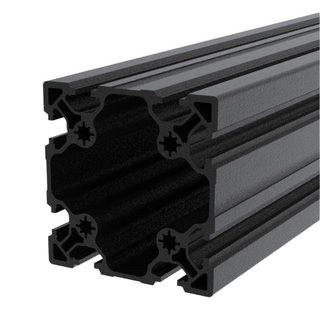

Not all aluminum profiles are equal.
A proud partner of Vention Commercial Grade Aluminum Profiles
No Flex. Stunning Color. Patented Design.
Vention’s high-precision aluminum extrusion profiles rank best-in-class in terms of structural rigidity, straightness, and precision.

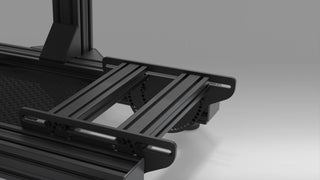

Pedal Assembly 360
Install using the center pivot point to rotate the pedals or free mount any way you choose. No Wrong way. No restrictions. This is pedal mounting freedom.
Included Accessories
included

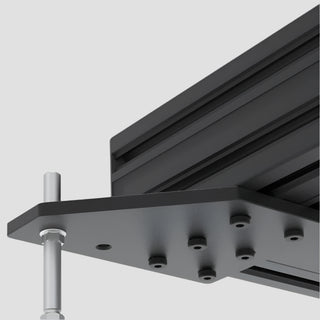

Base Plates & Sim Levelling feet
Our included baseplates and sim leveling feet are engineered for maximum stability, securing to the chassis with an industry-leading six-bolt configuration. Each baseplate comes pre-drilled with both M8 and M12 mounting holes, giving you the flexibility to add your choice of casters or accessories with ease.
included

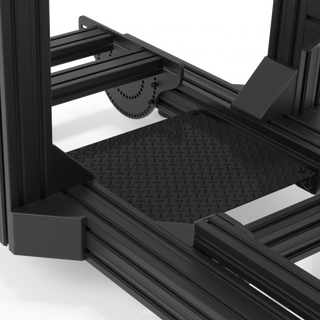

Sim Floor / Foot Rest
Corrosion-resistant foot rest with diamond tread for added rigidity and slip resistance. Made from 3003-H22 Aluminum Diamond Plate, 1/8'' [3.18mm] thick and powder coated in resistant black, it is a welcome pit stop for your feet.

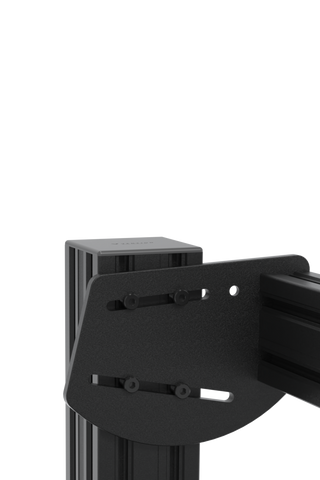

Wheel Base Mounting Options
While our competitors have opted to go with smaller side wheel mount plates, we kept our larger with 4 bolts to keep it secure. We don't care for flex but we do care for flexibility. You can adjust your wheel angle any way you choose.
includes:
- choice of wheel mount below
- 9.5mm aluminium 6061 adjustable side wheel plates x 2
- powder coated in black
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st,
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12

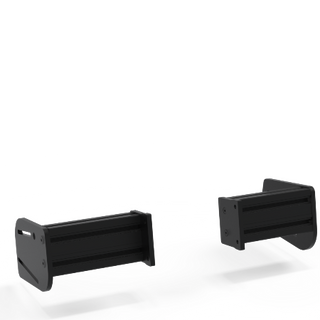

Wheel Deck
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD
Profile Wheel Mount
compatible with:
✅ Asetek Wheel Bases
✅ Most Add-On Wheel Bases Mounts
✅ All WheelBases that use a clamp

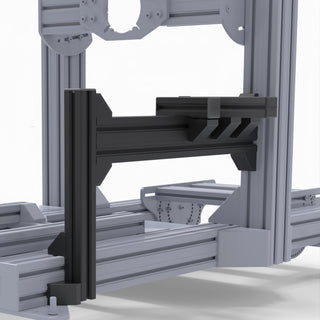

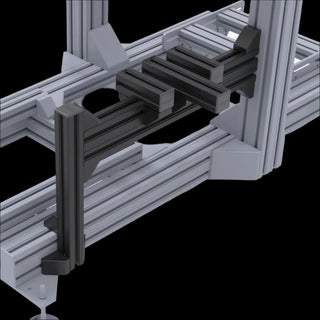

Side Mounting
We engineered the strongest side mount of any cockpit on the market. With 7 precision mounting points, you'll be shocked by the flex you never knew existed in your previous setup
- 22in 45x90 inch Aluminum Profile
- 14in 45x45 inch Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- 2 x 7 inch mounting profiles
- 1 x `10 inch center mounting profile
Pro LE Plus Specifications
Included
Pro Frame Assembly
- Black powder coated aluminum profiles
- M8 Steel Bolts
- M8 Spring Loaded Drop in T-Nuts
Base Plate & Sim Feet
- 4 x 8 hole 9.5mm thick baseplates
- 4 x 100mm high Levelling feet
- 80mm Scratch Resistant Rubber Base
- Flanged Head M12 Steel Nuts
- M8 Steel Bolts
- M8 Spring Loaded Drop in T-Nuts
Pedal Plate 360
- 2 x Pedal Plate 360
- 2 x 385mm (15.5inches) 38x76 mm Aluminum Profiles (to mount pedals)
- M8 Steel Bolts
- M8 Spring Loaded Drop in T-Nuts
Wheel Mount
- Choice of Wheel Mount; Wheel Deck Mount, Front Wheel Mount (+$), Fanatec Wheel Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
- M8 Steel Bolts
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly
- Welcome package with detailed step by step instructions
- Full set-up support throughout the assembly process
- "Connect Your Gear"
- All bolts and Nuts to attach your wheel, pedals, shifter
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Side Shifter Mount
- 22in 45x90 mm Aluminum Profile
- 14in 45x45 mm Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- 2 x 7 inch mounting profiles
- 1 x `10 inch center mounting profile
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Pro LE Plus Dimensions (incl. sim feet)
Length: 1270mm / 50 inches
Width: 765mm / 30 inches
Height: 820mm / 32.5 inches
