Pro Series
$1,300.00
Availability

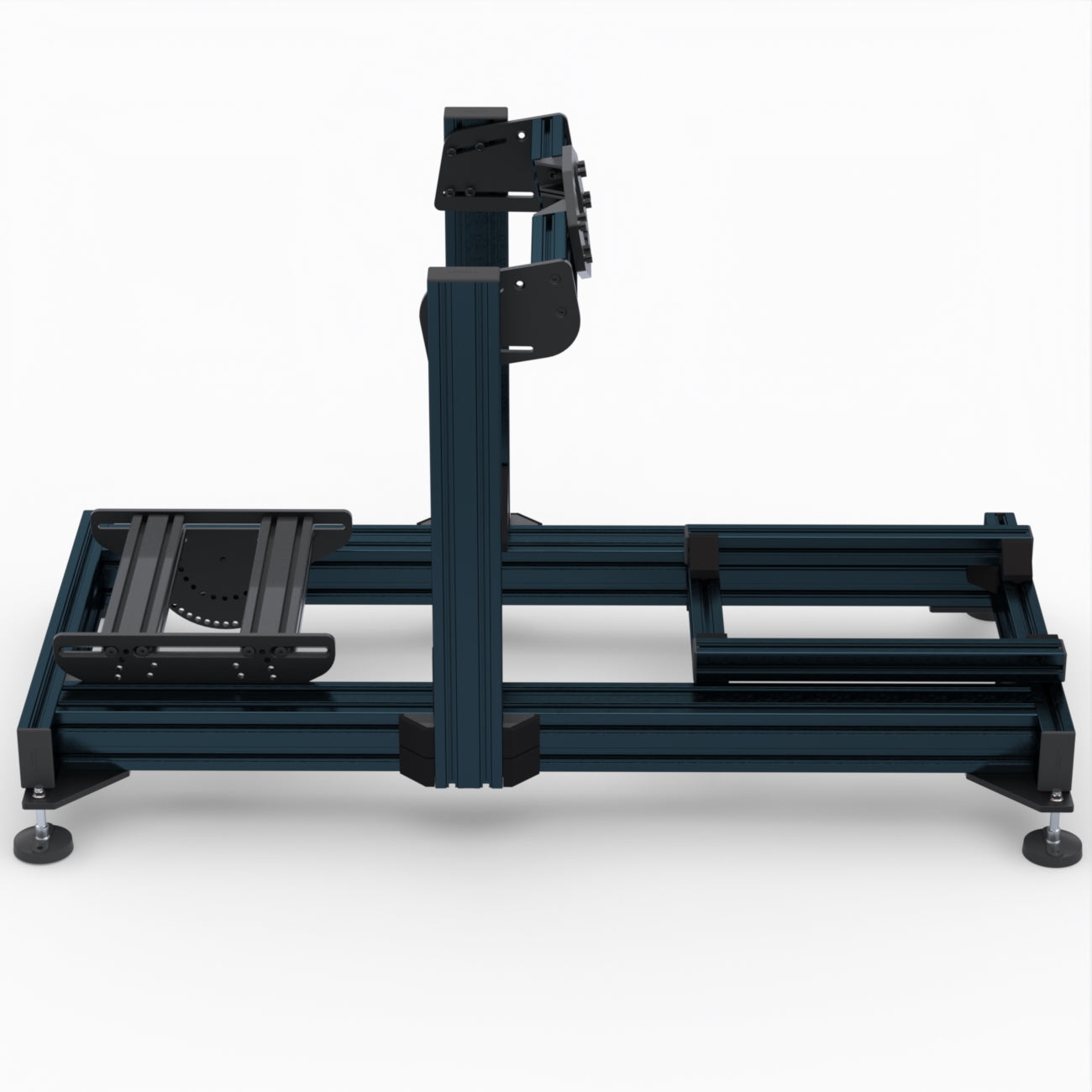

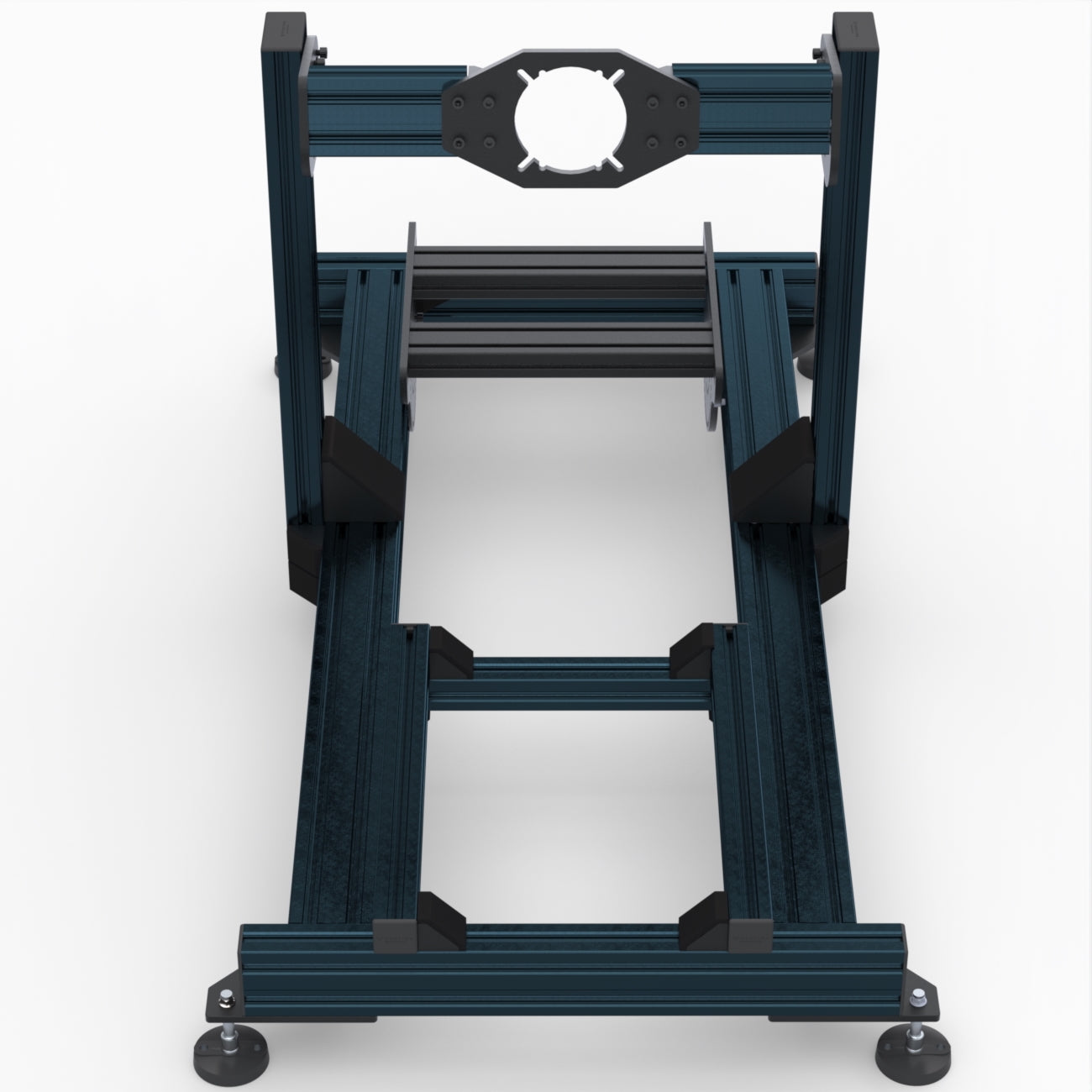

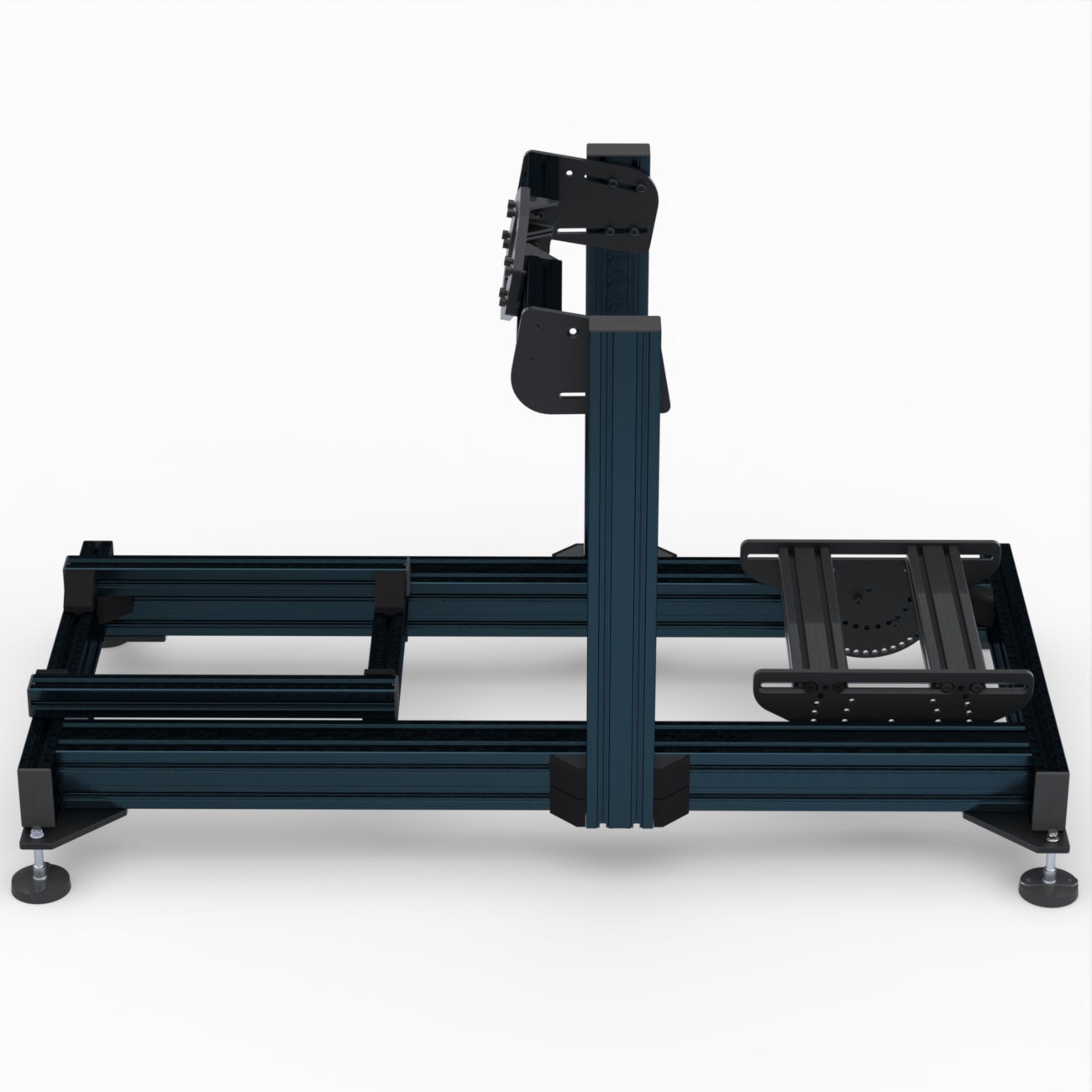

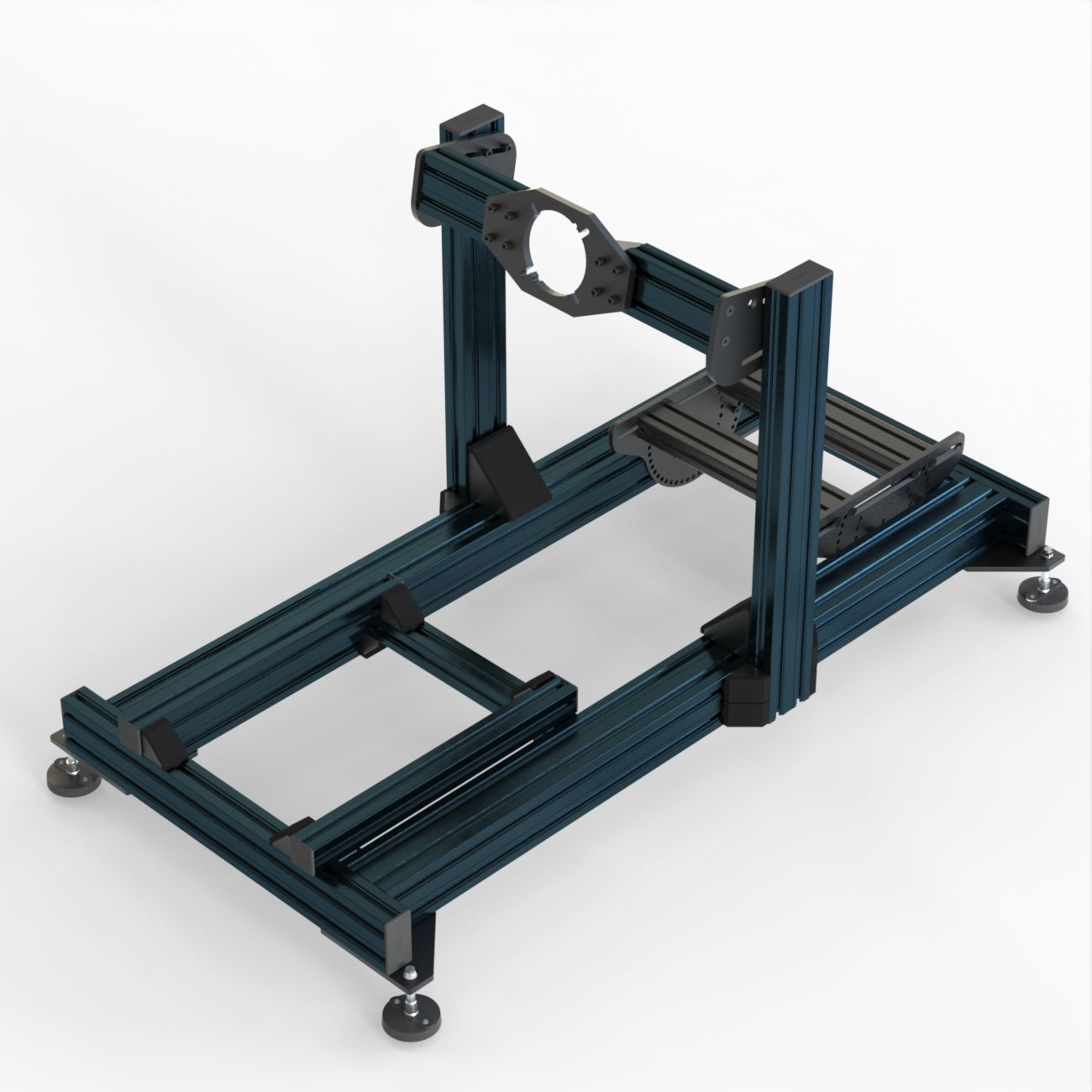

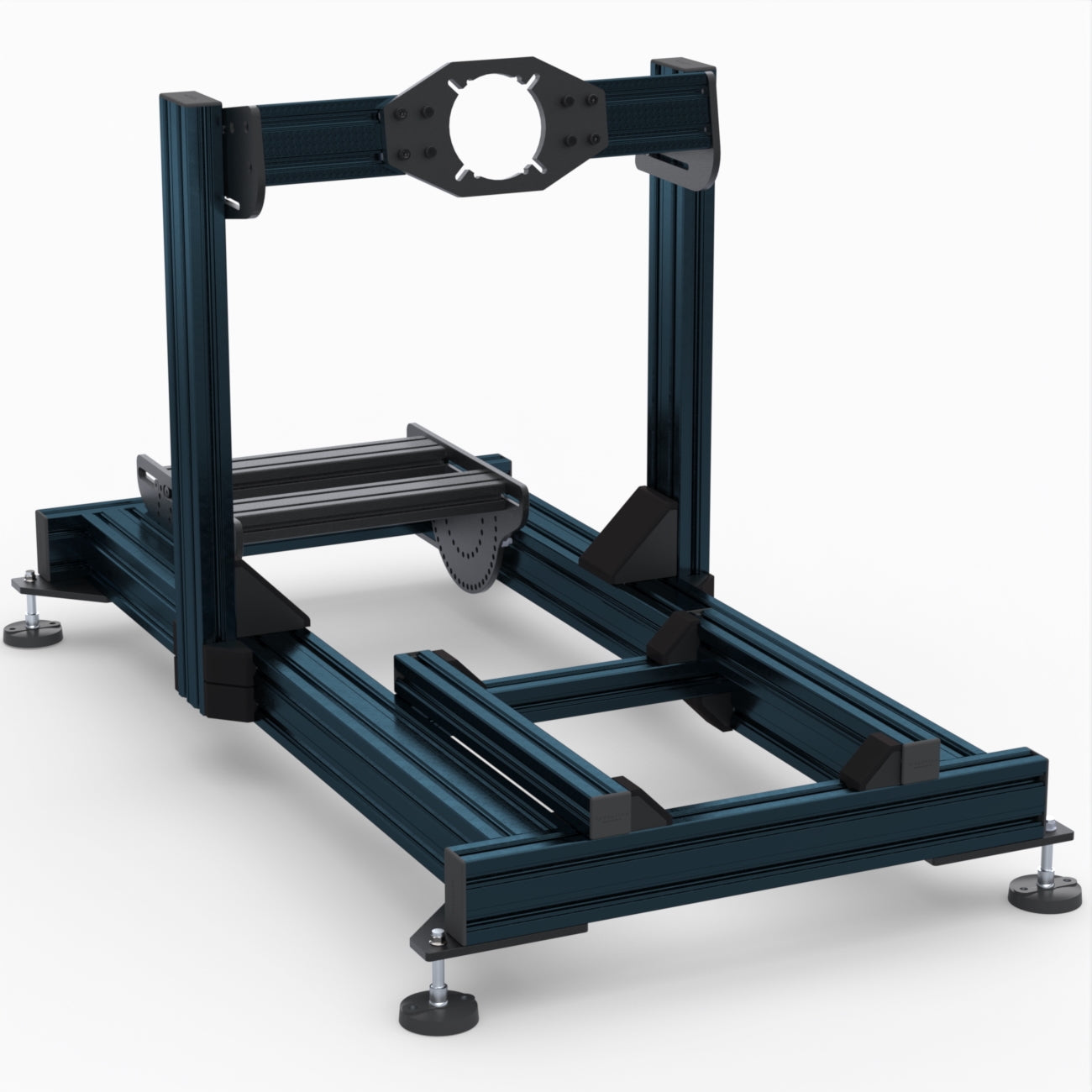

Every element of the Pro Model was engineered to be the sturdiest frame possible.

With a base length constructed from beastly 90x90mm commercial grade aluminum profiles connected to 90x90mm brackets, this cockpit has no flex with even the mightiest of wheelbases

90mmx90mm Aluminum Extruded Profile

Not all aluminum profiles are equal.

A proud partner of Vention Commercial Grade Aluminum Profiles

No Flex. Stunning Color. Patented Design.

Vention’s high-precision aluminum extrusion profiles rank best-in-class in terms of structural rigidity, straightness, and precision.

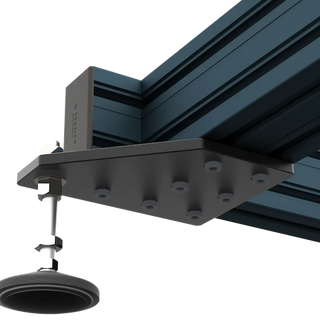

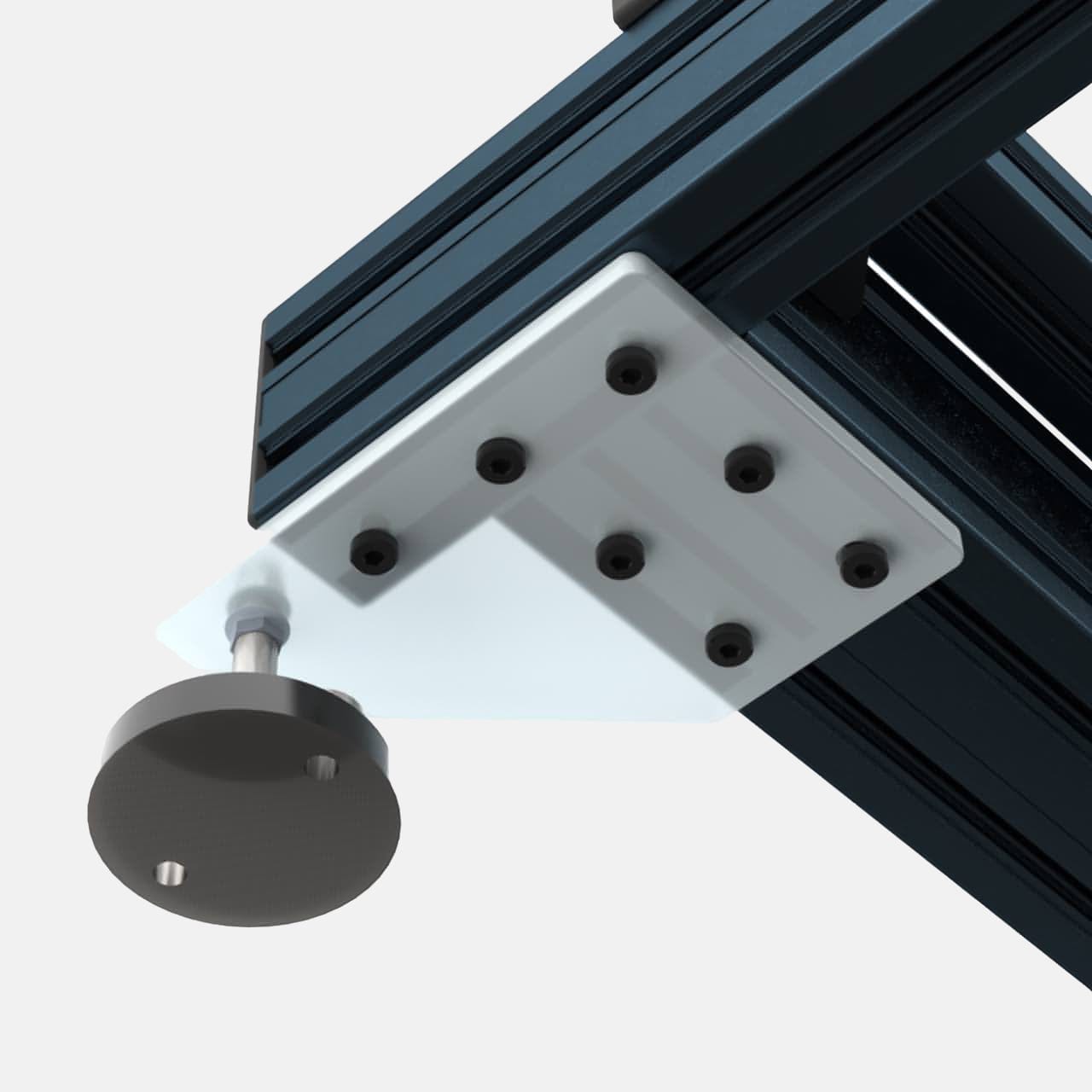

Base Plates

Seven strategically placed mounting holes enhance the frame's overall rigidity by securely connecting both the end profiles and side profiles. M12 leveling feet give the rig further adjustability in terms of frame height and levelling capabilities.

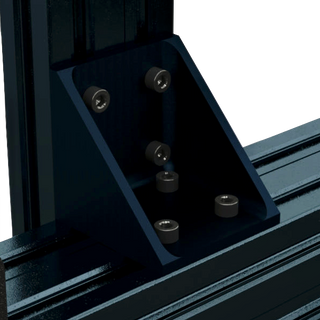

Monster Brackets

Our 90x90mm corner brackets have 8 bolt holes securing the wheel uprights to the base. Add that to the 2 other side brackets and you have 12 bolts making sure that your wheelbase is secured stronger than any other sim racing chassis out there.

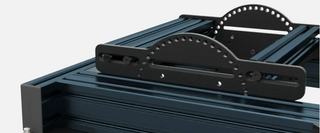

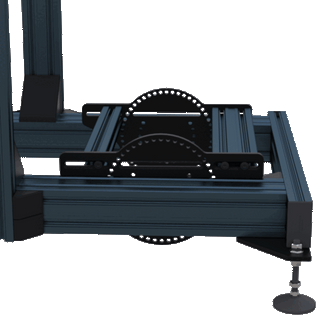

Pedal Plate 360

Install using the center pivot point to rotate the pedals or free mount any way you choose. With a minimum of 2 bolts attached, your pedals will be rock solid.

Upgrade To:

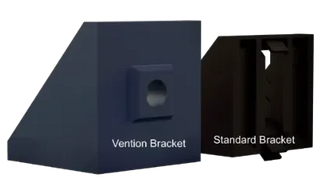

Vention Corner Brackets

Solid. Precise. Robust.

Vention’s high-precision brackets are designed to be combined with Vention’s extrusions, creating high-performance assemblies. They have been engineered with self-positioning “V-shape” locators, enabling precision assembly that cannot typically be done with conventional extrusion system. Additionally, each locator connection node can carry up to 25% more payload than brackets without V-shaped grooves.

Wheel Base Mounting Options

Wheel Deck

compatible with

✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21

includes: Wheel Deck Mount plate 9.5mm (3/8 inch) -- 2 x 9.5mm adjustable side wheel mounts -- Made in Canada with Aluminum 6061 -- Powder coated in black

Front Mount

compatible with:

✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st,
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12

includes: Front Wheel Mount plate 12.7.mm (1/2 inch) -- 2 x 9.5mm adjustable side wheel mounts -- Made in Canada with Aluminum 6061 -- Powder coated in black

Fanatec Mount

compatible with:

✅ Fanatec Podium DD1

✅ Fanatec Podium DD2

✅ Fanatec CSL DD

✅ Fanatec GT DD

includes: 2 x 9.5mm adjustable side wheel mounts -- Made in Canada with Aluminum 6061 -- Powder coated in black -- Choice between both CSL DD and Podium

Side Mounting Options

Side Mount

22 inch long profile that can be raised or lowered. Can be used on left or right side.

Shifter Plate

Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec

add Fanatec Kit

Includes:4 x corner brackets perfectly matching the underside hole locations

Deluxe

Includes: 2 x 180mm (7in) crossbars secured by 4 corner brackets easily mounting any shifter or handbrake.

Triple Deluxe Kit

Includes: 2 x 180mm (7in)+ 1 x 270mm (10.5in) crossbars secured by 6 corner brackets easily mounting any shifter or handbrake or a combination of both.

AnyMount

Includes: 1 x 14in (360mm) upright, 1 x 12.4in (315mm) cross profile, 2 x 10.6in (270mm) mounting profiles, 4 extra to use to mount your device.

Pro Edition Specifications

Included

Pro Frame Assembly

  • Azure blue anodized aluminum extruded profiles.
  • M8 Steel Bolts (class 12.9)
  • M8 Spring Loaded Drop in T-Nuts
  • M8 Steel Bolts (class 12.9)
  • M8 Spring Loaded Drop in T-Nuts

Base Plate & Sim Feet

  • 4 x 7 hole 9.5mm thick baseplates
  • 4 x 120mm high Levelling feet
  • 80mm Scratch Resistant Rubber Base
  • Flanged Head M12 Steel Nuts
  • M8 Steel Bolts (Class 12.9)
  • M8 Spring Loaded Drop in T-Nuts

Pedal Plate 360

  • 2 x Pedal Plate 360
  • 2 x 385mm 45x90 Aluminum Profile
  • M8 Steel Bolts (class 12.9)
  • M8 Spring Loaded Drop in T-Nuts

Wheel Mount

  • Choice of Wheel Mount; Wheel Deck Mount, Front Wheel Mount (+$), Fanatec Wheel Mount
  • 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
  • M8 Steel Bolts (class 12.9)
  • M8 Spring Loaded Drop in T-Nuts

Premium Packaging

  • All parts identified and separated by assembly
  • Welcome package with detailed step by step instructions
  • Full set-up support throughout the assembly process
  • "Connect Your Gear"
  • All bolts and Nuts to attach your wheel, pedals, shifter

Essentials Kit

  • Extra T-Nuts
  • Extra M8 Bolts
  • Velcro Tie Wraps
  • 5mm Allen Key
  • 6mm Allen Key
  • Mount My Gear Kit

Options

Side Shifter Mount

  • 1 x 22 inch horizontal mounting Aluminum Extrusion
  • 1 x 16 inch Vertical Aluminum Profile
  • 7 x 45x45mm Corner Brackets
  • M8 Steel Bolts (Class 12.9)
  • M8 Spring Loaded Drop in T-Nuts
  • As Ordered ;  Stadard / Shifter Plate / Fanatec Kit / Deluxe Kit

Pro Edition Dimensions

Length: 1395mm / 54.9 inches

Width: 675mm / 26.5 inches

Height: 720mm / 28.3 inches
