Phantom

SE

The Phantom SE racing simulator cockpit was designed to meet the core framing needs to get serious about sim racing. We solidified a frame allowing you to scale up as you see fit.This "Standard-Edition" frame is anything but standard

Features

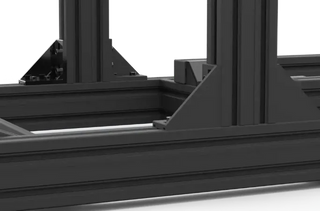

Bigger Brackets

We secured the wheel uprights with double sized bracketd instead of the traditional single. This allows us to have 8 bolts that connect onto the frame instead of 4, which increases the joint strength by sharing the load throughout more high grade 12.9 socket cap head bolts.

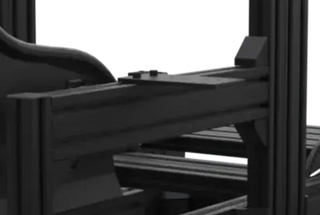

Wheel Side Mount

9.5mm high grade aluminum plates secure the wheel mount to the frame. They tilt, angle, move forward and back. You wont have to sacrifice flex to adjust your wheel as you like.

Included

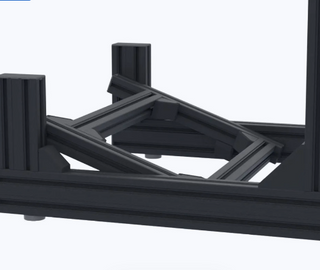

SE Pedal Mounting

There is something to be said for simple solutions.The SE pedal assembly is not only simple but it adjustable in height and angle. By using profiles to mount your pedals, you are not limited by slots on a pedals plate.

Wheel Base Mounting Options

All of our wheel mounts are made in Canada with high grade aluminum 6061 and powder coated in black.

Includes 2 x sturdy, no flex, 3/8 inch thick side mount plates that are adjustable to meet your happy place.

Wheel Deck

Compatible with:

✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW

Front Mount

(+$) Includes:

Compatible with:
✅ All Simucube 1, 2, Sport, Pro & Ultimate
✅ Fanatec Clubspor, CSL Elite
✅ MiGe 130st
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12

Fanatec Mount



Compatible with:

✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD

Side Mounting Options

Side Mount

-Can be raised or lowered

-Can be used on left or right side

add Shifter Plate

Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec

add Fanatec Kit

Includes:4 x corner brackets perfectly matching the underside hole locations

We only use Grade 12.9 Socket Cap Head Bolts in our Pro frames.

Tensile strength measures the amount of tension force that a material can endure without failure. The higher the tensile strength, the stronger the bolt.

Socket Head Cap M8 Bolts . Min. Tensile Strength1200 N/mm2
Button Head Cap M8 Bolts Min.Tensile Strength 1000 N/mm2

Phantom Edition Specifications

included

Phantom SE Frame

52 inch long 1.5xin Aluminum Profile x 2
25 inch tall 1.5x3in Aluminum Profile x 2
23 inch wide 1.5x3in Aluminum Profile x 2
19 inch long 1.5x1.5 Aluminum Profile x 2
1.5x1.5 inch corner brackets x 24
M8 Steel Bolts (class 12.9)
M8 Spring Loaded Drop in T-Nuts

INCLUDED

SE Pedal Assembly

2 x 16in (405mm) 1.5x1.5in cross mounted to mount your pedals
M8 Steel Bolts (class 12.9)
M8 Spring Loaded Drop in T-Nuts

INCLUDED

Wheel Mount

Choice of Wheel Mount

-Wheel Deck Mount,

-Front Wheel Mount (+$)

-Fanatec Wheel Mount

2 x 9.5mm Side Wheel Mount Adjustable Connector Plates

M8 Steel Bolts (class 12.9)

M8 Spring Loaded Drop in T-Nuts

INCLUDED

Premium Packaging

All parts identified and separated by assembly
Welcome package with detailed step by step instructions
Full set-up support throughout the assembly process
"Connect Your Gear"
All bolts and Nuts to attach your wheel, pedals, shifter

INCLUDED

Essentials Kit

Extra T-Nuts x 10

Extra M8 Bolts x 10

Velcro Tie Wraps x 10

5mm Allen Key

6mm Allen Key

Mount My Gear Kit

OPTION

Base Plate & Sim Feet

Base Plate & Sim Feet

4 x 3 hole 9.5mm thick base plates

4 x 100mm high Levelling feet x 4

80mm Scratch Resistant Rubber Base

Flanged Head M12 Steel Nuts

M8 Steel Bolts (Class 12.9)

M8 Spring Loaded Drop in T-Nuts

OPTION

Side Shifter Mount

1 x 21 inch 1.5x3 inch Aluminum Profile

1 x 14 inch 1.5x1.5 inch Aluminum Profile

4 x 1.5x1.5 inch Corner Brackets

M8 Steel Bolts (Class 12.9)

M8 Spring Loaded Drop in T-Nuts

As Ordered ;  Stadard / Shifter Plate / Deluxe Kit

Phantom SE Dimensions

Length: 1320mm / 52 inches

Width: 660mm / 26 inches

Height 710mm / 28 inches

Optional Sim Feet adds 100mm (4.4 inches) to the height and 90mm (3.35inches) to the width
