Not all aluminum profiles are equal.
A proud partner of Vention Commercial Grade Aluminum Profiles
No Flex. Stunning Color. Patented Design.
Vention’s high-precision aluminum extrusion profiles rank best-in-class in terms of structural rigidity, straightness, and precision.
WORLD'S MOST ADVANCED PEDAL MOUNTING

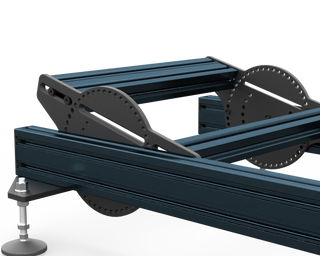

Pedal Plate 360
Install using the center pivot point to rotate the pedals or free mount any way you choose. With a minimum of 2 bolts attached, your pedals will be rock solid.

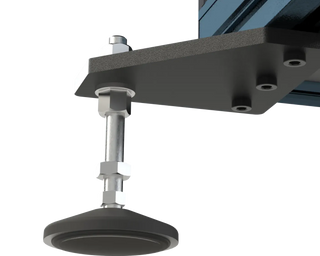

Optional Sim Feet
Made high grade aluminum 6061 for strength and powder coated in black for beauty and resistance. Includes 100mm rod giving the rig further adjustability in terms of frame height and levelling capabilities.
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st,
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD
Side Mounting Options
Side Mount
-Can be raised or lowered
-Can be used on left or right side
add Shifter Plate
Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec
add Fanatec Kit
Includes:4 x corner brackets perfectly matching the underside hole locations
Add Deluxe Kit
Includes:2 x 180mm (7in) crossbars secured by 4 corner brackets on the 45x90 long profile

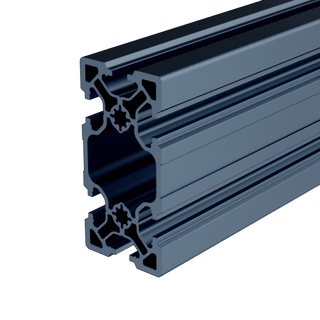

Vention aluminum profiles go beyond the ordinary.

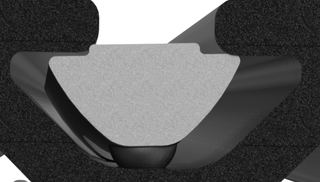

Speed up your assembly by spending less time positioning t-nuts. The V2 design features two guiding edges that run the length of the extrusion. These fences force the t-nut into the correct position, so t-nuts will always be correctly positioned when a connector is bolted to them. The bottom area also has a slot for the spring ball, ensuring straight connections every time.

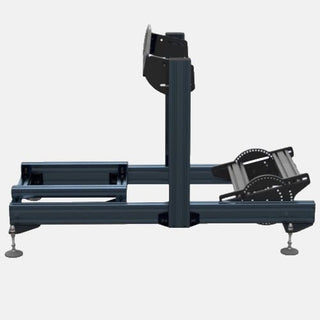

Pro-SE Specifications
included
Pro SE Frame
305mm 45x90mm Aluminum Profile x 2
720mm 45x90 Aluminum Profile x 2
495mm 45x90 Aluminum Profile x 2
495mm 45x45 Aluminum Profile x 2
45x45mm Corner Brackets x 24
M8 Steel Bolts (class 12.9)
M8 Spring Loaded Drop in T-Nut
INCLUDED
Pedal Plate 360
Pedal Plate 360 x 2
475mm 45x90 Aluminum Profile
475mm 45x45 Aluminum Profile
M8 Steel Bolts (class 12.9)
M8 Spring Loaded Drop in T-Nuts
INCLUDED
Wheel Mount
Choice of Wheel Mount
-Wheel Deck Mount,
-Front Wheel Mount (+$)
-Fanatec Wheel Mount
2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
M8 Steel Bolts (class 12.9)
M8 Spring Loaded Drop in T-Nuts
INCLUDED
Premium Packaging
All parts separated by assembly
Welcome package with simple instructions
Full set-up support throughout assembly
"Connect Your Gear";
All bolts and Nuts to attach your wheel, pedals, shifter
INCLUDED
Essentials Kit
Extra T-Nuts x 10
Extra M8 Bolts x 10
Velcro Tie Wraps x 10
5mm Allen Key
6mm Allen Key
Mount My Gear Kit
OPTION
Base Plate & Sim Feet
Base Plate & Sim Feet
4 x 7 hole 9.5mm thick baseplates
4 x 120mm high Levelling feet x 4
80mm Scratch Resistant Rubber Base
Flanged Head M12 Steel Nuts
M8 Steel Bolts (Class 12.9)
M8 Spring Loaded Drop in T-Nuts
OPTION
Side Shifter Mount
1 x 540mm 45x90 Aluminum Profile
1 x 360mm 45x45 Aluminum Profile
5 x 45x45mm Corner Brackets
M8 Steel Bolts (Class 12.9)
M8 Spring Loaded Drop in T-Nuts
As Ordered ; Stadard / Shifter Plate / Fanatec Kit / Deluxe Kit
Pro SE Dimensions
Length: 1305mm / 51.4 inches
Width: 675mm / 26.5 inches
Height 720mmmm / 28.3 inches
Optional Sim Feet adds 100mm (4.4 inches) to the height
and 90mm (3.35inches) to the width
