Engineering Best Practices: strength and longevity come first.

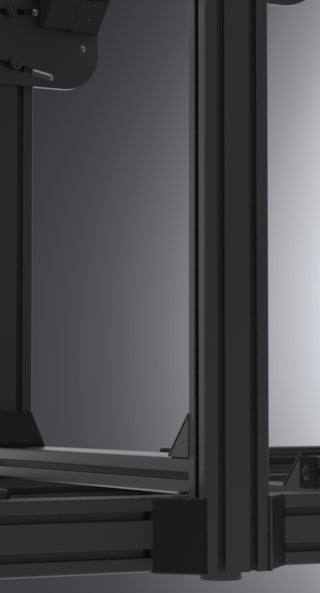

We will never bolt though one aluminum profile and into another. For a stronger, more durable, and vibration-resistant sim racing rig, corner brackets outperform tapped end hole connections in every key mechanical category. The added rigidity, longevity, and resistance to stress-induced failure make them the clear engineering best practice.
Difficult to scratch. Easy to Repair.

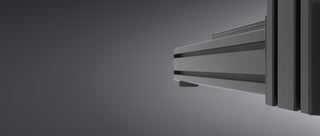

The FInish
Powder Coated to Perfection
The Improvement: Every cockpit in our Phantom Series is finished with premium, outdoor-grade black textured powder coating.
Why we did it: Anodized aluminum scratches easily — and standard powder coatings aren't much better.
The Result: It’s the toughest finish you'll find on any sim racing cockpit. And if you somehow manage to scratch it, the textured surface makes it easy to conceal with a simple black touch-up.
cockpits are a canvas, not a closed system.

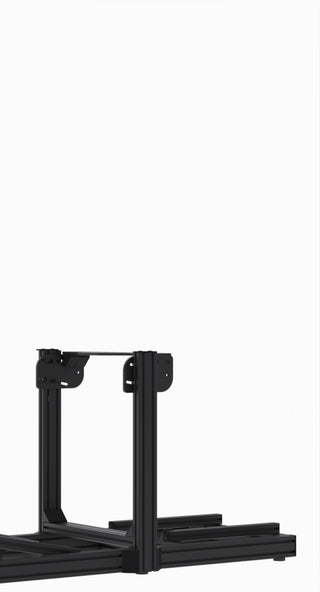

No Flat Faced Profiles
The Improvement: We will never use flat faced aluminum extruded profiles.
Why we did it: While many competitors cut costs by using flat-faced aluminum profiles, we chose not to compromise.
The Result: Our designs make it easy to upgrade your cockpit, add a motion system, or attach accessories—ensuring maximum flexibility and long-term value.
Attach Anything. Anywhere
Game changer

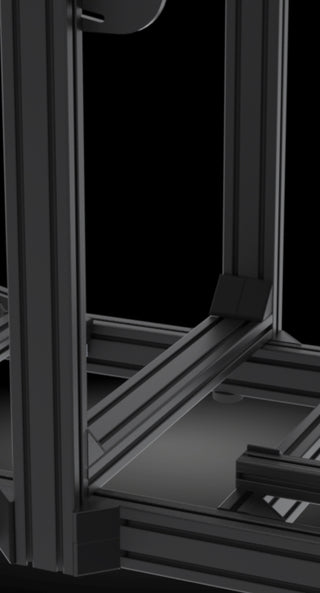

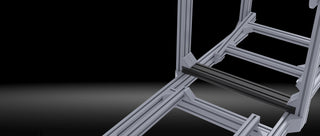

The Cross Beam
The Improvement: We added a cross beam at the base of the wheel uprights
Why we did it: Cross beams enhance support by evenly distributing force, boosting rigidity and stability.
The Result: Best in class. No other mid-range cockpit comes close to the Phantom SE.

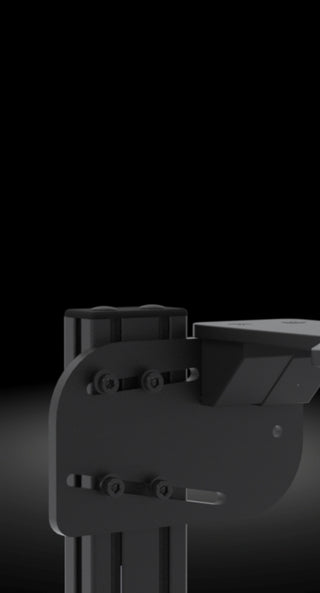

Tilt it. Bring it forward. Push it back.

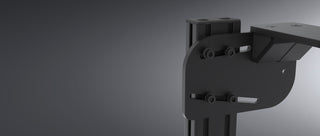

The All in 1 Gaming Difference: While the trend is to reduce the size of joining plates, we deliberately kept our side wheel mount plates large.
Why we did it: Larger wheel plates large allow 4 bolts to secure it to the wheel upright.
The Result: Your wheel base will be solid and secure, not matter the angle
Wheel Base Mounting Options

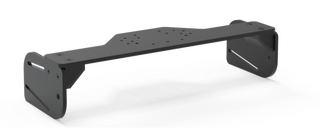

Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21

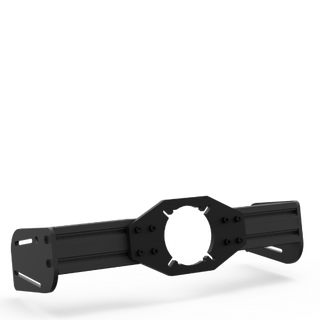

Front Mount
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21

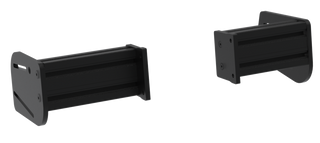

Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD

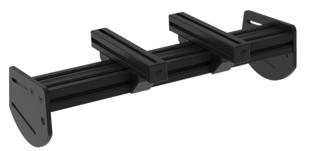

Profile Mount
compatible with:
✅ Astek Wheel Bases
✅ Most Add-On Wheel Bases Mounts
✅ All WheelBases that use a clamp
SE Pedal Assembly
Adjustable in height and pedal angle.
By using profiles to mount your pedals, you are not limited by slots on a pedal plate.
*if your pedals are not listed, please reach out to us, 99% chance they will be!
The strongest side mount ever.
The All in 1 Gaming Difference:
We engineered the strongest side mount of any cockpit on the market. With 7 precision mounting points, you'll be shocked by the flex you never knew existed in your previous setup.
Why we did it
The more mounting points your side shifter mount has, the more force you can use on your racing sim gear without feeling your cockpit flex.
The Result
So go ahead and grab on the hand brake, change gears on the sequential or H shifter with intensity. Your simulation will move, your rig won’t.
Side Mounting Add-ons
OPTION
Shifter Plate
Compatible with: Logitech, Thrustmaster, Fanatec mounting patterns.
OPTION
Fanatec SQ Shifter
4 x brackets work perfectly to indermount a Fanatec SQ SHifter
OPTION
Deluxe Kit
An easy solution to mount any shifter or handbrake.
OPTION
Triple Deluxe Kit
Mount any shifter or handbrake or a combination of both!

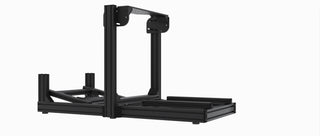

Phantom SE Specifications
Included
Phantom Frame
- 50 inch long 1.5x3 inch Profile x 2
- 28 inch tall 1.5x3 inch Wheel Upright Profile x 2
- 20 inch wide 1.5x3 inch Spreader Profile x 3
- 19.5 in 1.5x1.5 inch Seat Rail Profile x 2
- 1.5x1.5 Corner Brackets x 24
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nut
SE Pedal Plate Assembly
- 2 x 16in (405mm) 1.5x1.5in cross mounted to mount your pedals
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Fanatec Mount, or Profile Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates x2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- All hardware to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Side Mount
- 22in 1.5x3 inch Aluminum Profile
- 16in 1.5x1.5 inch Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Sim Feet & Base Plates
- 4 x 3 hole 9.5mm thick base plates
- 4 x 120mm high levelling feet x 4
- 80mm scratch resistant rubber base
- flanged head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Dimensions:
Length: 1270mm / 50 inches
Width: 660mm / 26 inches
Height 735mm / 29 inches
Sim feet adds 100mm or 4.4 inches to height and 6 inches to the width.
Warranty:
Lifetime warranty.
See Support Page for details.
