Raised Pedal Position
Pedal Plate 360
Our pedal assemble offers tons of options.
Prefer to lower your pedals,. no problem, flip the assembly upside down to mount your pedals even lower.
Lower Pedal Position
Included
1.5x4.5 Wheel Uprights
1.5x3 Spreader Profiles
Adjustable Wheel Side Mount
Pedal Plate 360
Options
Base Plates & Sim Feet
Side Mount
Front Profile
Inverted Pedal Kit
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130s
✅ All SimMagic
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD
Side Mounting Options
Option

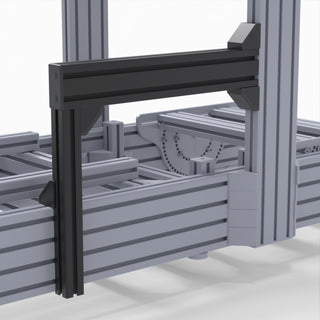

Standard Side Mount
includes:
- 1 x 14 inch 1.5x1.5 Vertical Profiles
- 1 x 18 inch 1.5x3 Horizontal Profile
- 4 x Corner Brackets
- limited range to raise or lower.
- Can be used on left or right side.
OPTION

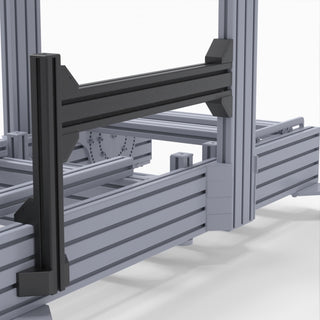

Heavy Duy Side Mount
includes:
- 1 x 16 inch 1.5x1.5 Vertical Profiles
- 1 x 22 inch 1.5x3 Horizontal Profile
- 7 x Corner Brackets
- Easily raise or lower.
- Can be used on left or right side.
Side Mounting Add-ons
OPTION

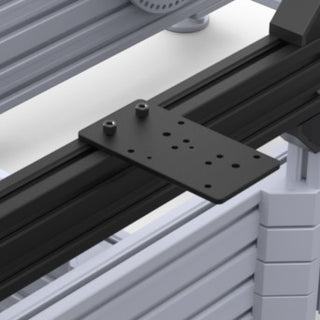

Shifter Plate
Compatible with: Logitech, Thrustmaster, Fanatec mounting patterns.
OPTION
Fanatec SQ Shifter
4 x brackets work perfectly to indermount a Fanatec SQ SHifter
OPTION

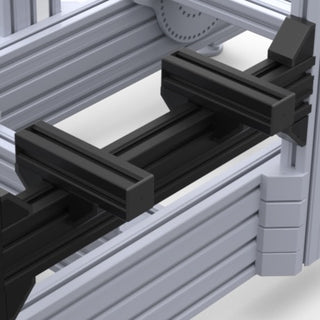

Deluxe Kit
An easy solution to mount any shifter or handbrake.
OPTION

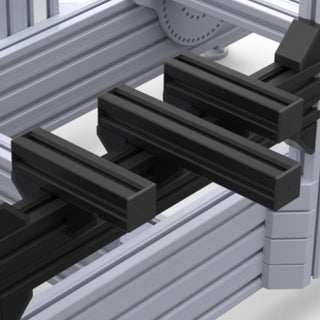

Triple Deluxe Kit
Mount any shifter or handbrake or a combination of both!
Phantom V3 Specifications
Included
Phantom Frame
- 50 inch long 1.5x4.5 inch Profile x 2
- 29 inch tall 1.5x4.5 inch Wheel Upright Profile x 2
- 20 in 1.5x3 inch Spreader Profile x 2
- 19.5 in 1.5x1.5 inch Seat Rail Profile x 2
- 1.5x1.5 Corner Brackets x 24
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nut
Pedal Plate 360
- Pedal Plate 360 x 2
- 19in 1.5x3 inch Aluminum Profiles x 2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front MountOr Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates x2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- All hardware to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Sim Feet & Base Plates
- 4 x 3 hole 3/8 inch (9.5mm) thick base plates
- 4 x 120mm high levelling feet x 4
- 80mm scratch resistant rubber base
- Flanged head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Side Mount
- 22in 1.5x3 inch Aluminum Profile
- 16in 1.5x1.5 inch Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Inverted Pedal Kit
- 1.5 x 4.5 inch aluminum profiles to adjust pedal height x2
- heel rest and a 1.5 x 3 cross profile to mount it
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Dimensions:
Length: 1270mm / 50 inches
Width: 660mm / 26 inches
Height 812mm / 32 inches
Optional Sim Feet adds 100mm (4.4 inches) to the height and 90mm (3.35 inches) to the width
Warranty:
Lifetime warranty.
See Support Page for details.
