Free Shipping in USA & Canada*
Made In Canada
No Duties
No Taxes in the USA
Included
1.5x4.5 Wheel Uprights
1.5x6 Spreader Profiles
Adjustable Wheel Side Mount
Pedal Plate 360
Base Plates & Sim Feet
Options
Side Mount
Front Profile
Inverted Pedal Kit
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st,
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD
Side Mounting Options
Option

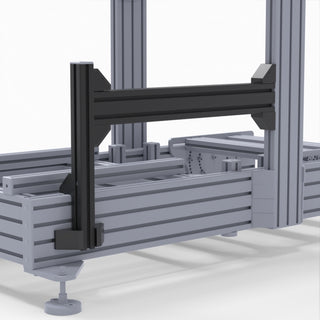

Side Mount
22 inch long profile that can be raised or lowered. Can be used on left or right side.
OPTION
Shifter Plate
Includes: Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec
OPTION
Fanatec SQ Shifter
Includes: 4 corner brackets to easily upwards mount all 4 hole locations on the Fanatec SQ Shifter
OPTION
Deluxe Kit
Includes: 2 x 180mm (7in) crossbars secured by 4 corner brackets easily mounting any shifter or handbrake.
OPTION
Triple Deluxe Kit
Includes: 2 x 180mm (7in)+ 1 x 270mm (10.5in) crossbars secured by 6 corner brackets easily mounting any shifter or handbrake or a combination of both.
OPTION
AnyMount
Includes: 1 x 14in (360mm) upright, 1 x 12.4in (315mm) cross profile, 2 x 10.6in (270mm) mounting profiles, 4 extra to use to mount your device

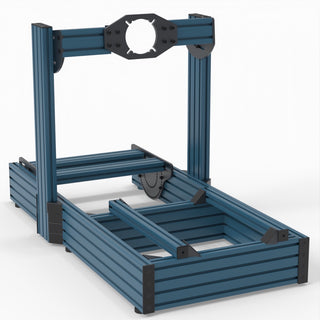

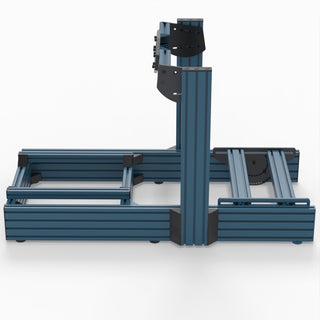

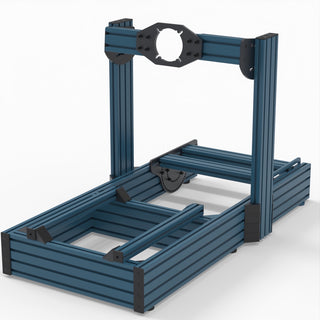

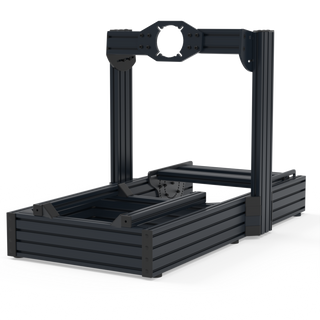

Phantom Premium Specifications
Included
Phantom Frame
- 52in long 1.5x6 inch Profile x 2
- 32in tall 1.5x4.5 inch Profile x 2
- 20in wide 1.5x6 inch Profile x 2
- 20in long 1.5x1.5 inch Profile x 2
- 1.5x1.5 Corner Brackets x 20
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nut
Pedal Plate 360
- Pedal Plate 360 x 2
- 19in 1.5x3 inch Aluminum Profiles x 2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Or Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates x2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Sim Feet & Base Plates
- 4 x 3 hole 9.5mm thick base plates
- 4 x 120mm high levelling feet x 4
- 80mm scratch resistant rubber base
- flanged head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- All hardware to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Side Mount
- 22in 1.5x3 inch Aluminum Profile
- 16in 1.5x1.5 inch Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Inverted Pedal Kit
- 1.5 x 4.5 inch aluminum profiles to adjust pedal height x2
- heel rest and a 1.5 x 3 cross profile to mount it
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Dimensions:
Length: 1320mm / 52 inches
Width: 660mm / 26 inches
Height 812mm / 32 inches
Optional Sim Feet adds 100mm (4.4 inches) to the height and 90mm (3.35 inches) to the width
Warranty:
Lifetime warranty.
See Support Page for details.
