Attaching your parts
Your Rig - Their Gear. Let's make a match.
A growing list of all Sim Racing Gear and how to attach it all to your aluminum extruded profile racing simulator cockpits.
This list is a work in progress and meant to be a community feed. Please reach out for any changes necessary or any questions at all.
WHEEL BASE
Alpha
Mounting Method: Front Wheel Mount
Mounting Hardware Specs: M8-1.25 (X+12)mm Bolts, X= Depth of your Plate
All in 1 Gaming Cockpits (X=12.75)
Installation Hardware Needed: 4 x M8 25mm Bolts + M8 Washers
Installation Bolts included? Yes, but we suggest upgrading to better quality bolts.
Notes:
Possible to also side mount with Simagic Side Mount Brackets.
WHEEL BASE
Alpha Mini
Mounting Method: Front Wheel Mount
Mounting Hardware Specs: M8-1.25 (X+12)mm Bolts, X= Depth of your Plate
All in 1 Gaming Cockpits (X=12.75)
Installation Hardware Needed: 4 x M8 25mm Bolts + M8 Washers
Installation Bolts included? Yes, but we suggest upgrading to better quality bolts.
Notes:
Possible to also side mount with Simagic Side Mount Brackets.
WHEEL BASE
Alpha Ulimate
Mounting Method: Front Wheel Mount
Mounting Hardware Specs: M8-1.25 (X+12)mm Bolts, X= Depth of your Plate
All in 1 Gaming Cockpits (X=12.75)
Installation Hardware Needed: 4 x M8 25mm Bolts + M8 Washers
Installation Bolts included? Yes, but we suggest upgrading to better quality bolts.
Notes:
Possible to also side mount with Simagic Side Mount Brackets.
WHEEL BASE
Alpha EVO
Mounting Method: Bottom Mounting (Wheel Deck)
Mounting Hardware Specs: M6-1.0 (X+9.5)mm Bolts, X= Depth of your Plate
All in 1 Gaming Cockpits (X=9.525)
Installation Hardware Needed: 4 x M6 20mm Bolts + 4 x M6 Washers
Installation Bolts included? No
Notes:
Possible to also side mount or Front Mount with Simagic Side Mount Brackets.
**Front Mount brackets from Simagic interfere with All in 1 Gaming Front Wheel Mount Assembly.
Wheel Base
CSL DD
Wheel Base
Installation Hardware: Not included
Side Mounting: M6-1.0 Bolt (X+10)mm
X= Depth of your Plate
All in 1 Gaming Cockpits:
Use (M6 20mm Bolt + M6 washer) x4
WHEEL BASE
Podium DD1/DD2
Installation Hardware: Not included
Side Mounting: M8-1.25 Bolt (X+20)mm
X= Depth of your Plate
All in 1 Gaming Cockpits:
Use (M8 30mm Bolt + M8 washer) x4
Bottom Mounting: M6-1.0 Bolt (X+12)mm
X=Depth of Your Plate
All in 1 Gaming Cockpits: x = 9.5mm
Pedals
ClubSport V3
Installation Hardware: Not Included
Bolted down through the fanatec pedals into aluminum profile slot.
All in 1 Gaming Cockpits:
Use (M8 18mm Bolt + M8 T-Nut) x4
Pedals
ClubSport V3 Inverted
Installation Hardware: Not Included
Bolted down through the fanatec pedals into aluminum profile slot.
All in 1 Gaming Cockpits:
Use (M8 18mm Bolt + M8 T-Nut) x4
Wheel Base
Direct Force Pro
Wheel Base
Installation Hardware: Not included
Front Mounting: M8 through Bolt
not threaded, depth size of hole: ? (guess is 15mm)
X= Depth of your Plate (Front Wheel Mount)
X+15mm + 10mm (space for nut) = 35-40mm
All in 1 Gaming Cockpits:
M8 40mm bolt + M8 washer + M8 Nut
Pedals
DirectForce® Pro Pedals
Installation Hardware: Not Included
Bolted down into profiles
M6 bolts + M6 T-Nuts required, 4 per pedal
Thickness of pedal base: ?
Guess: 4-6mm
All in 1 Gaming Cockpits:
Use M6 bolts x 4, M6 16mm bolts + M^ washer (if needed)
Wheel Base

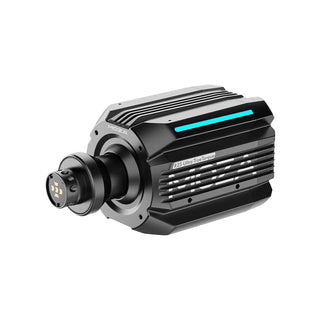

Moza R25
R25
Installation Hardware: ?
Bottom Mounting: M6-1.00 Bolt (X+?)mm
X= Depth of your Plate
All in 1 Gaming Cockpits (X=9.5):
Use: (M6 ?mm Bolt + M6 Washer)x4
