Phantom 60 Max Sim Racing Cockpit
quick specs
Base Frame
8 x Corner Brackets
Profile System
15 Series, T-Slotted
Finish
Black Premium Powder Coating
Wheel Uprights
8 x brackets per side
Wheel Mount
Choice
Pedal Plate 360
Included
Side Mount
Included
Sim Feet
Included
Connect-My-Gear
Included
Premium Packaging
Included

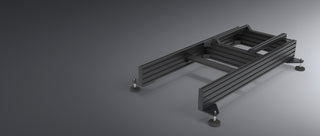

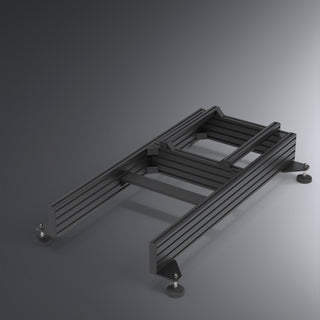

Phantom 60 Max Frame
Attach Anything, Anywhere
Scratch Resistant
Engineered to Last
Engineered to Grow With You.
Attach Anything. Anywhere.
Open-faced T-Slot Aluminum Profiles.
Built with open-faced T-Slot aluminum, our modular cockpits are made to evolve with you—ready for upgrades, motion systems, and accessories. No compromises. Just long-term value.

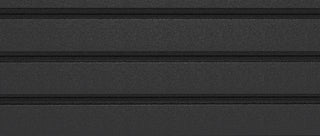

Beautiful Resilient powder coating
Scratch Resistant.
Powder Coated to Perfection.
Every cockpit in our Phantom Series is finished with premium, outdoor-grade black textured powder coating. It’s the toughest finish you'll find on any sim racing cockpit. And if you somehow manage to scratch it, the textured surface makes it easy to conceal with a simple black touch-up.

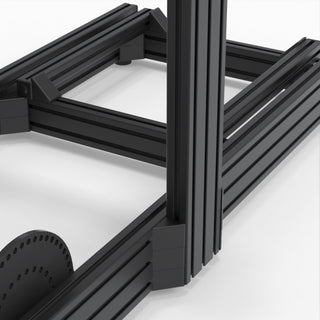

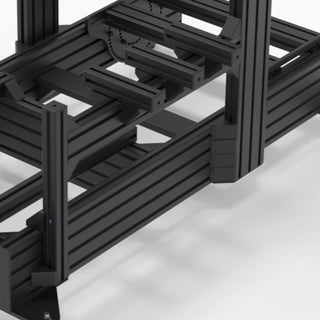

Engineered to Last.
Engineering Best Practices: strength and longevity come first. We will never bolt though one aluminum profile and into another. corner brackets outperform tapped end hole connections in every key mechanical category.

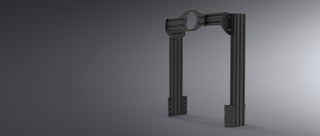

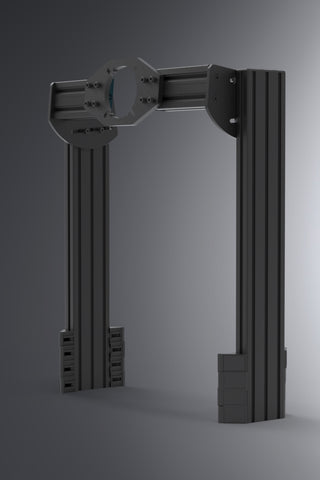

Phantom 60 Wheel Mount
Flexibility Without Flex
Strength From the Ground Up
Flexibility Without Flex
Flexibility
Our side wheel mount plates are engineered for racers who demand more from their rig. Designed to connect your wheel mount to the uprights, they offer exceptional adjustability—dial in your perfect driving position by easily tilting your wheel or sliding it forward or back.
No Flex
Unlike typical two-bolt designs, we use four high-strength bolts for each side. This not only increases clamping force but also maximizes surface contact with the uprights, delivering rock-solid stability even under aggressive force feedback.
-
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ Simagic M10, Simagic Alpha EVO (new)
✅ Moza R5,R9,R16,R21

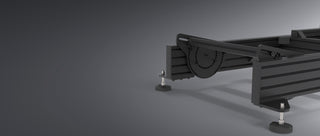

Phantom 60 Pedal Mount
360 Degrees of Freedom
Easiest System to Invert
Compatible with all Pedals
The most versatile pedal mounting system ever.

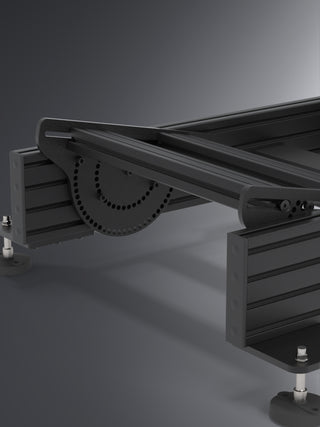

360 Degrees of Freedom
Mount Your Pedals Your Way
Use the center pivot point to easily rotate your pedals or mount them freely in any position you like. There’s no wrong way and no restrictions. GT, Formula, karting, raised, lowered, inverted, even flight sim setups, whatever your style, your pedals will follow.
No wrong way.
No restrictions.
This is true pedal mounting freedom.

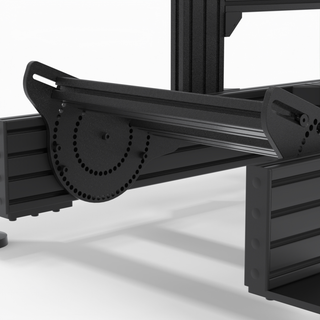

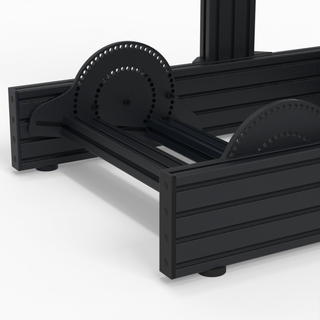

Angle It.
Lower it.
Invert It.
Pedal Compatibily
*if your pedals are not listed, please reach out to us, 99% chance they will be!
- ✅ Augury AP-21
- ✅ Asetek (all miodels)
- ✅ Fanatec (all models)
- ✅ Heusinkveld (all models)
- ✅ Insim Talento
- ✅ Logitech (all models)(need to add a corner bracket kit)
- ✅ Mecca Cup Pedals
- ✅ Moza CRP, CRP2, SR-P
- ✅ Simagic (all models)
- ✅ Simtrecs ProPedal GT
- ✅ SimWorkx Pro pedals
- ✅ SimCoaches P1-3
- ✅ Simsonn Plux X, Pro X
- ✅ Simucube Pedals, ActivePedals
- ✅ Simgrade R7, VX-PRO
- ✅ Thrustmaster (all models) (need to add corner bracket kit)
- ✅ VRS DirectForce Pro
- ✅ VNM Lite, Pedals V 1
We take side mounts very seriously.

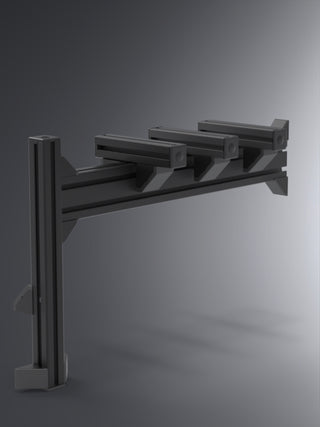

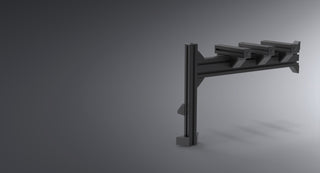

Phantom Side Mount
The Strongest Side Mount Ever
Height Adjustable
Universal Mounting
See how different side mounts perform in our flex test video.

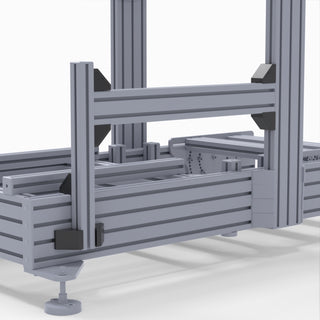

Strongest side mount ever made.
7 Corner Brackets.
14 Bolts.
Zero Flex.

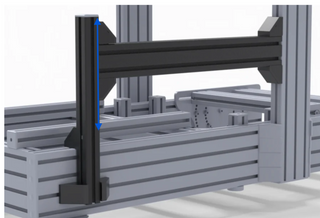

Height Adjustable
Vertical Support Where It Matters
The upright profile mounts at 90 degrees to the horizontal, not underneath, giving you full height adjustability for your shifter or handbrake.
Designed to fit you. Not the other way around.

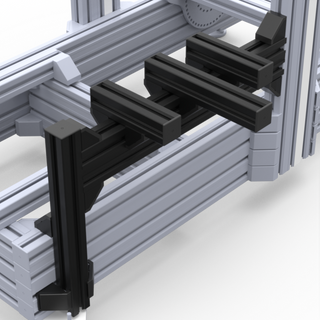

Included Side Mount
Triple Deluxe Kit
Mount any shifter or handbrake or a combination of both!

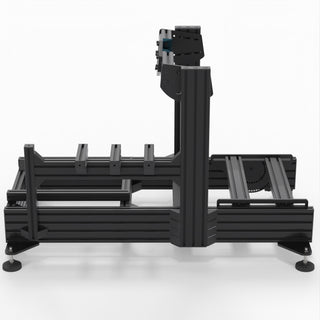

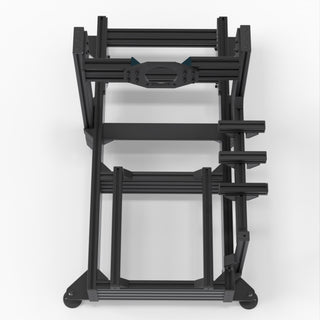

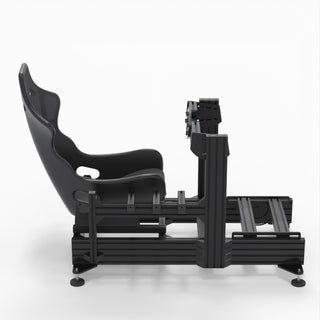

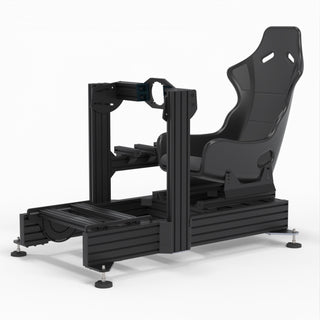

Phantom 60 Max Specifications
Included
Phantom Frame
- 52in 1.5x6 inch Long Profile x 2
- 32in 1.5x4.5 inch Wheel Upright Profile x 2
- 20in 1.5x3 inch Spreader Profile x 2
- 19.5 1.5x1.5 inch Seat Rail Profile x 2
- 1.5x1.5 Corner Brackets x 28
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nut
Pedal Plate 360
- Pedal Plate 360 x 2
- 1.5x3 inch Spreader Profiles x 2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Or Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates x2
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Side Mount
- 22in 1.5x3 inch Aluminum Profile
- 16in 1.5x1.5 inch Aluminum Profile
- 7 x 1.5x1.5 Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Sim Feet & Base Plates
- 4 x 3 hole 9.5mm thick base plates
- 4 x 120mm high levelling feet x 4
- 80mm scratch resistant rubber base
- flanged head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- All hardware to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts
- Extra M8 Bolts
- Velcro Tie Wraps
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit
Options
Inverted Pedal Kit
- 1.5 x 4.5 inch aluminum profiles to adjust pedal height x2
- heel rest and a 1.5 x 3 cross profile to mount it
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Dimensions:
Length: 1270mm / 50 inches
Width: 660mm / 26 inches
Height 785mm / 31 inches
Sim feet adds 100mm or 4.4 inches to height and 6 inches to the width.
Warranty:
Lifetime warranty.
See Support Page for details.
