Free Shipping
No Duties
No Taxes in the USA
Included
1.5x4.5 Wheel Uprights
1.5x6 Spreader Profiles
Base Plate & SIm Feet
Front Profile
Adjustable Wheel Mount
Pedal Plate 360
Side Mount
Wheel Base Mounting Options
Wheel Deck
compatible with
✅ Fanatec Clubsport, CSL Elite
✅ Logitech G25,27, 29, G920, G923
✅ Fanatec DD1, DD2,CSL-DD, GT-Pro
✅ Accuforce V1/V2
✅ Thrustmaster TX,T300, T500, T-GT, TS-P, TS-XW
✅ SimMagic M10
✅ Moza R5,R9,R16,R21
Front Mount
compatible with:
✅ All Simucube
✅ Fanatec Clubsport, CSL Elite
✅ MiGe 130st,
✅ SimMagic M10, Alpha, Mini
✅ Bondar
✅ VRS Direct Force Pro
✅ Lenze MCS12
Fanatec Mount
compatible with:
✅ Fanatec Podium DD1
✅ Fanatec Podium DD2
✅ Fanatec CSL DD
✅ Fanatec GT DD
Inverted Pedals Option

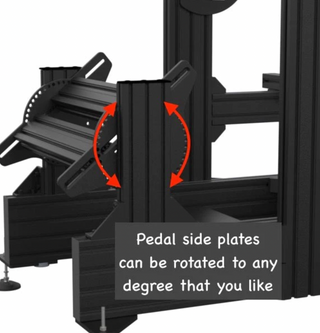

The Pedal Plate 360 is freedom to mount your pedals however you choose. Solidly invert your pedals at any angle you want.
The inversion kit adds:
-heel rest and a 1.5 x 3 cross profile to mount it
- 2 uprights to adjust the pedal assembly height
Side Mounting Options
Included
Side Mount
22inch long profile that can be raised or lowered. Can be used on left or right side
Option to add
Shifter Plate
Includes:Shifter Mount Plate; Compatible with: Logitech, Thrustmaster, Fanatec
Option to Add
Deluxe Side Mount Kit
Includes: 2 x 180mm (7in) crossbars secured by 4 corner brackets easily mounting any shifter or handbrake.

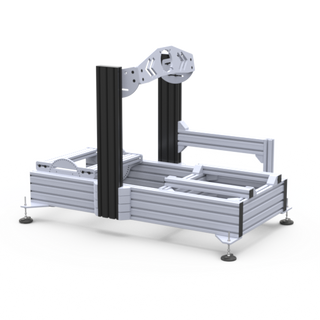

Phantom Elite Specifications
Included
Phantom Frame
- 52 in long 1.5x6 inch Profile x 2
- 32 in tall 1.5x4.5 inch Profile x 2
- 20 in wide 1.5x6 inch Profile x 2
- 19 in long 1.5x1.5 inch Profile x 2
- 20in wide 0.75x3 inch Front Profile
- 1.5x1.5 Corner Brackets x 28
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nut

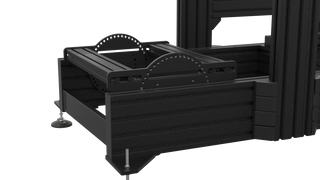

Pedal Plate 360
- Pedal Plate 360 x 2
- 19 in 1.5x6in Aluminum Profile
- 19 in 1.3x3in Aluminum Profile
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Choice of Wheel Mount
- Wheel Deck, Front Mount (+$) Or Fanatec Mount
- 2 x 9.5mm Side Wheel Mount Adjustable Connector Plates
- M8 Steel Bolts (class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Premium Packaging
- All parts identified and separated by assembly.
- Welcome package with detailed step by step instructions.
- Full set-up support throughout the assembly process.
- All hardware to attach your wheel, pedals, shifter, seat, etc
Essentials Kit
- Extra T-Nuts x 10
- Extra M8 Bolts x 10
- Velcro Tie Wraps x 10
- 5mm Allen Key
- 6mm Allen Key
- Mount My Gear Kit

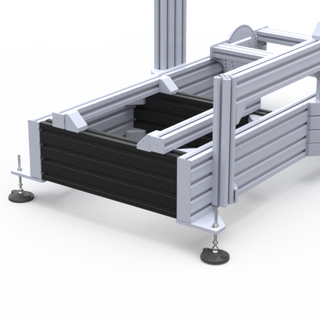

Sim Feet & Base Plates
- 4 x 3 hole 9.5mm thick base plates
- 4 x 120mm high levelling feet x 4
- 80mm scratch resistant rubber base
- flanged head M12 Steel Nuts
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Side Mount
- 1 x 21 in 1.5x3 in Aluminum Profile
- 1 x 14 in 1.5x1.5 in Aluminum Profile
- 4 x 1.5x1.5 in Corner Brackets
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
- Option to add: / Shifter Plate / Deluxe Kit
Options
Inverted Pedal Kit
- 2 x 1.5 x 4.5 inch aluminum profiles to adjust pedal height
- heel rest and a 1.5 x 3 cross profile to mount it
- M8 Steel Bolts (Class 12.9)
- M8 Spring Loaded Drop in T-Nuts
Dimensions:
Length: 1320mm / 52 inches
Width: 660mm / 26 inches
Height: 812mm / 32 inches
Sim Feet adds 100mm (4.4 inches) to the height and 90mm (3.35 inches) to the width
Warranty:
10 year warranty.
See Support Page for detials.
